Apvalūs lygūs stoglangiai Lamilux F100SG
Gamintojas: LAMILUX
Produkto vadybininkas:
Tomas Juknis
Tomas Juknis
8 687 21670
tomas.juknis@serfas.lt
Aprašymas
LAMILUX GLASS SKYLIGHT F100 CIRCULAR
GLASS SKYLIGHT FOR ADMINISTRATIVE, EDUCATIONAL OR RESIDENTIAL BUILDINGS
ADVANTAGES AT A GLANCE
GLASS SKYLIGHT F100 CIRCULAR
ENERGY EFFICIENCY
- Available in double or triple insulating glazing with TSG on the outside and LSG on the inside (LSG can be fitted with a clear or matt-light film) with Ug-values of 1.1 to 0.6 W/m²K
- Structure completely free of thermal bridges with a Uw-value between 1.1 and 0.76 W/m²K, depending on the glazing (as per EN ISO 10077-1)
- Thermally insulated, jointless GRP upstand, with a height of 70, 50 or 30cm with U-values ≥ 0.68 W/m²K
- Outstanding air-tightness due to the new balloon double sealing system: Performance class 4 – tested in accordance with EN 12207
- Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the LAMILUX Glass Skylight F100 Circular in accordance with DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025
COMFORT & DESIGN
- NEW: Chain drives which are invisibly integrated into the upstand, available – Awarded the German Design Award 2020 in the category Winner
- NEW: 5° inclined upstands available for an ideal self-cleaning effect
- Flat drainage surface: The newly designed frame profile provides a smooth transition between the glazing and the border frame, creating an unobstructed drain for rainwater
- Permanently clear view and generous daylight through scratch-resistant glazing
- Our Glass Skylight F100 Circular is BIM-ready – Download at bimobject.com
- Generous daylight incidence and lasting clear views due to scratchproof glazing
- White, silk-matt appearance inside – no additional drywall construction required
STABILITY
- Tested watertightness, even in high wind speeds (driving rain impermeability, in accordance with EN 12208, Class E 1950)
- Very high load-bearing capacity due to optimised profiles
- Approved fall-through protection
- Excellent stability under wind and snow loads
- UV-resistant edge bond
SAFETY
- The first building approved glass skylight in “Structural Glazing” design – certified by the German Institute for Structural Engineering (Deutsche Institut für Bautechnik, DIBt) in Berlin
- Condensation resistant between glass panels due to thermally decoupled edge bond, unlike plastic domes
- Preventive fire protection: Compliance with DIN 18234 – to prevent fire spread on the roof without additional measures such as gravel fill
- Can be used as an SHEV system in staircases
- Delivery of Glass Skylight F100 completely pre-assembled on the upstand
THE VARIANTS
GLASS SKYLIGHT F100 CIRCULAR
GLAZING TYPES

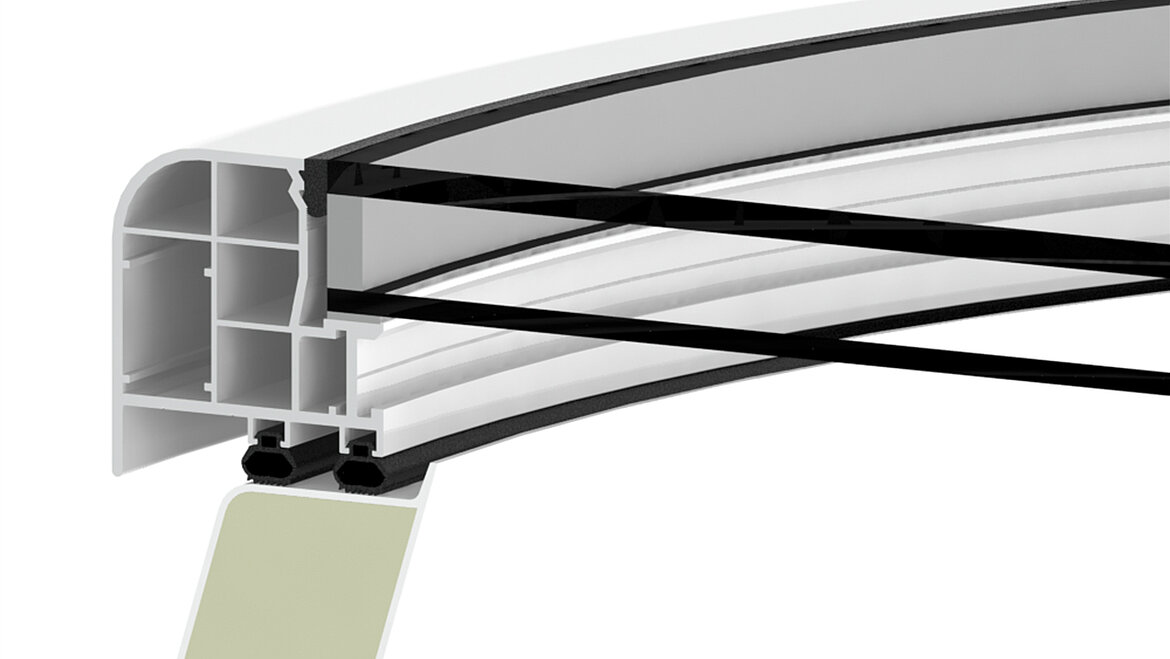

HEAT INSULATION GLAZING
DOUBLE TSG
- Ug-value: approx. 1,1 W/(m2K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 79%
- Energy transmission: approx. 62%

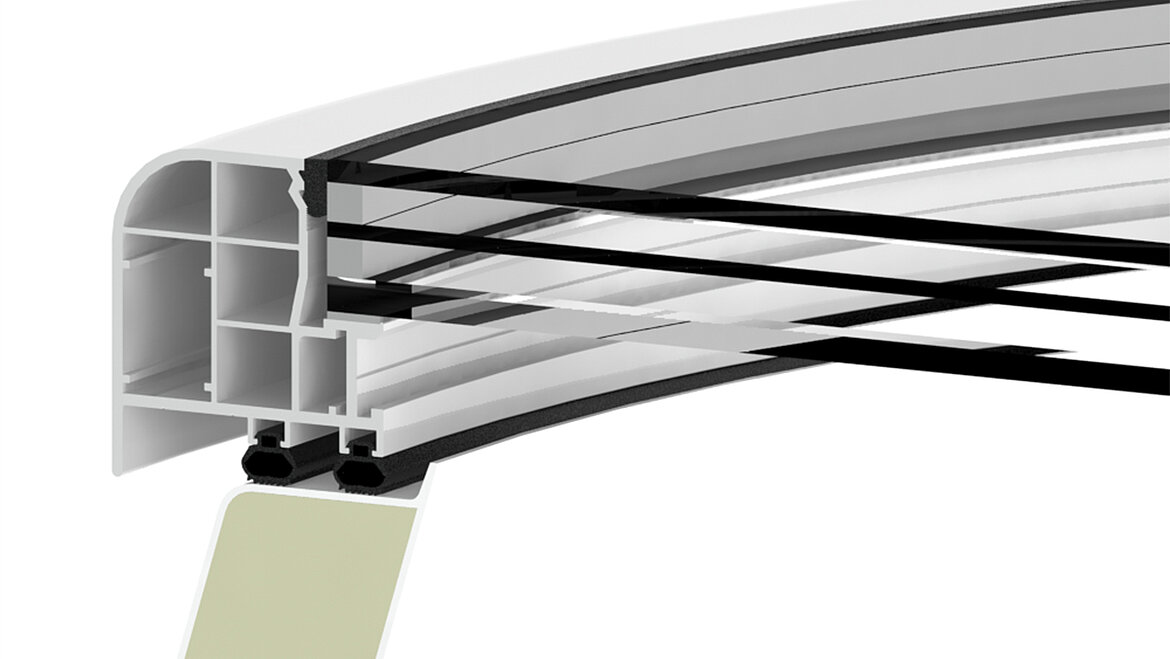

HEAT INSULATION GLAZING
TRIPLE TSG
- Ug-value: approx. 0,6 W/(m2K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 72%
- Energy transmission: approx. 51%

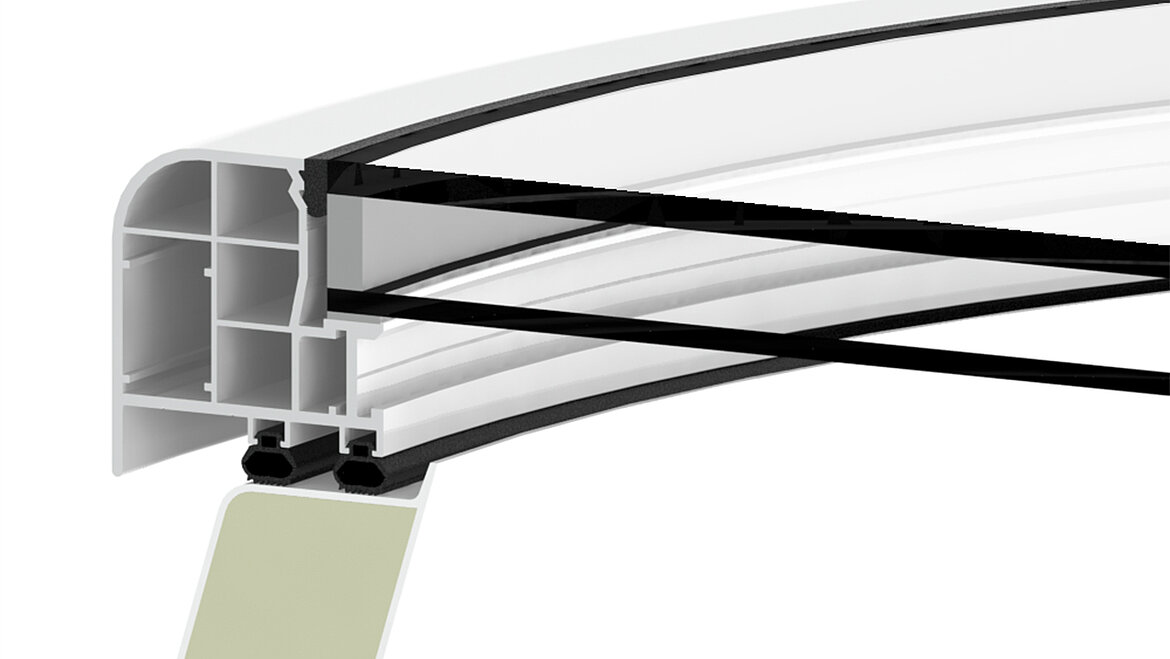

HEAT INSULATION GLAZING WITH MATT, LIGHT-COLOURED FILM (MHF)
DOUBLE TSG
- Ug-value: approx. 1,1 W/(m2K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 54%
- Energy transmission: approx. 59%

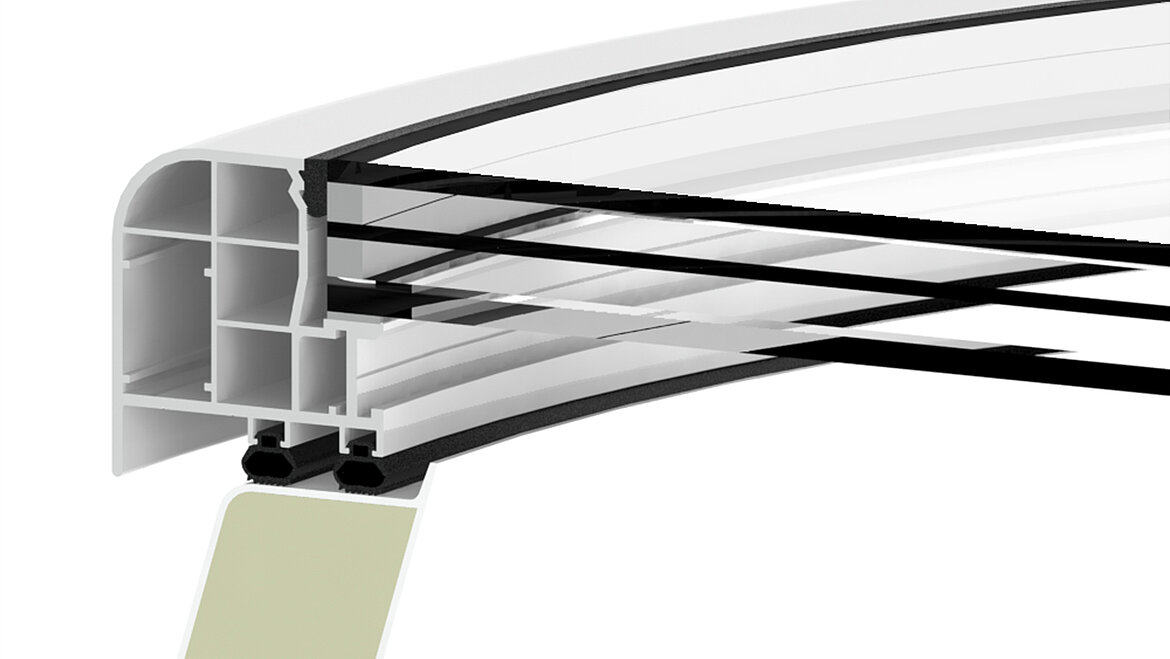

HEAT INSULATION GLAZING WITH MATT, LIGHT-COLOURED FILM (MHF)
TRIPLE TSG
- Ug-value: approx. 0,6 W/(m2K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 49%
- Energy transmission: approx. 50%

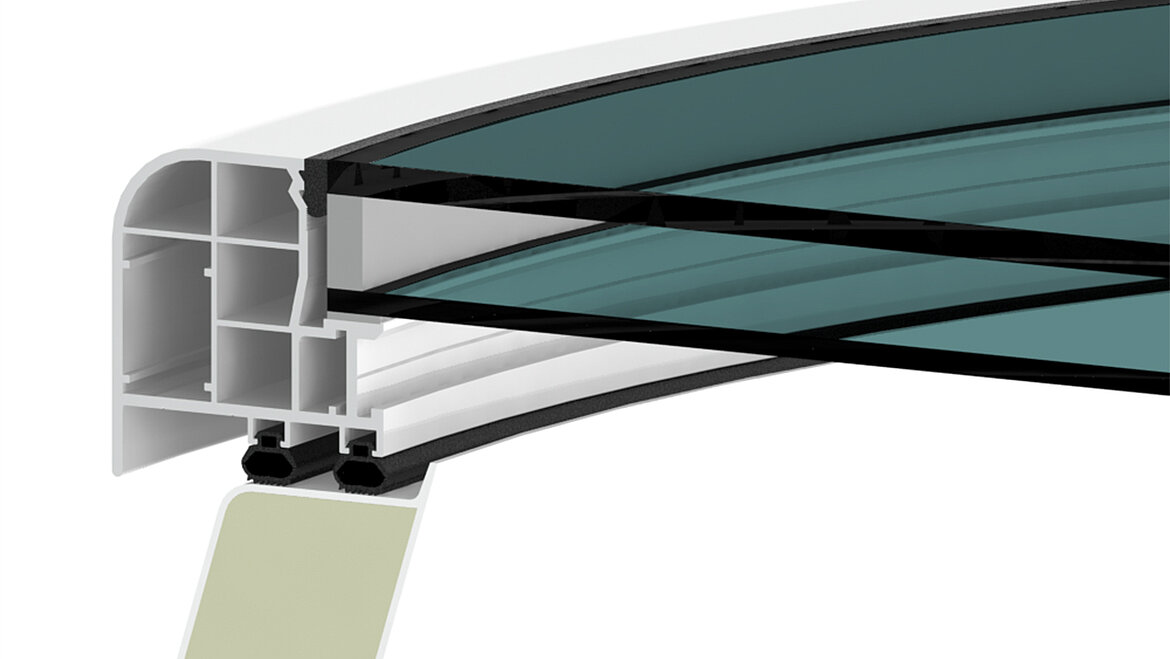

SUN PROTECTION GLAZING
DOUBLE TSG, 60/30
- Ug-value: approx. 1,1 W/(m2K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 60%
- Energy transmission: approx. 33%

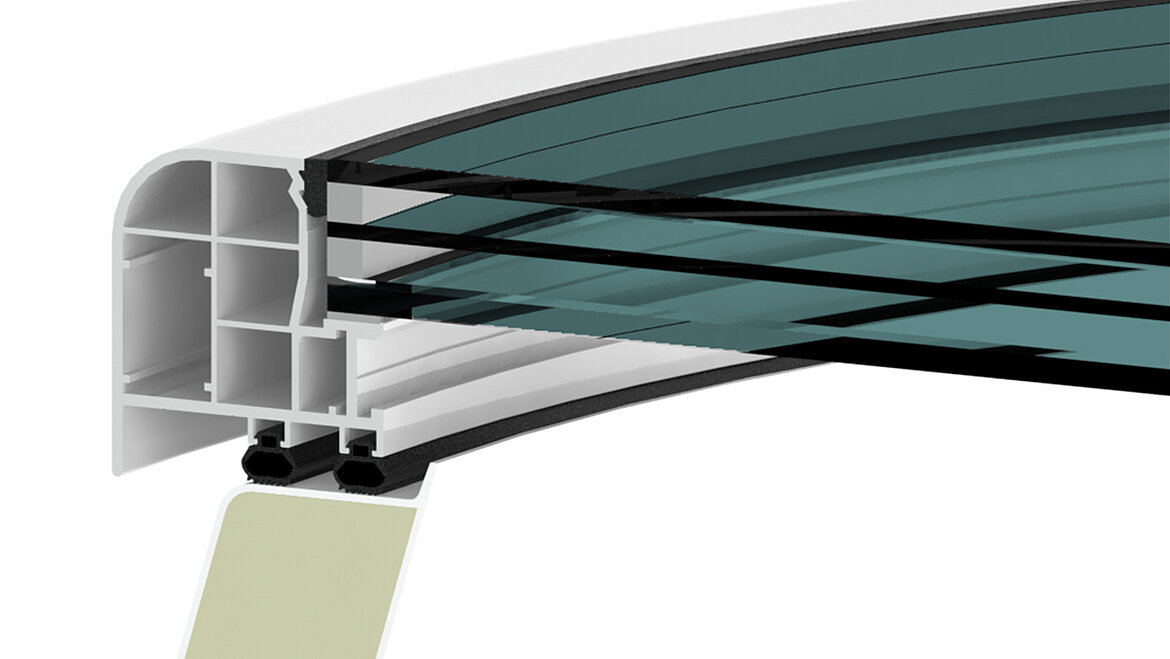

HEAT INSULATION GLAZING
TRIPLE TSG, 60/30
- Ug-value: approx. 0,6 W/(m2K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 55%
- Energy transmission: approx. 30%

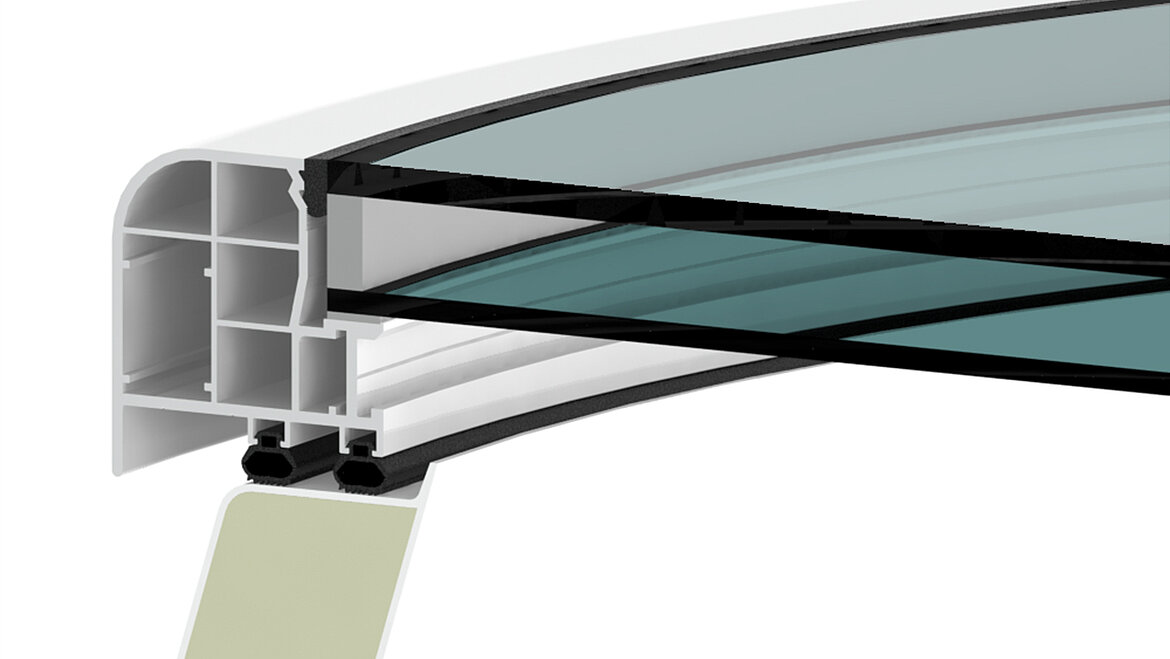

SOLAR PROTECTION GLAZING WITH MATT, LIGHT-COLOURED FILM (MHF)
DOUBLE TSG, 60/30
- Ug-value: approx. 1,1 W/(m2K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 41%
- Energy transmission: approx. 32%

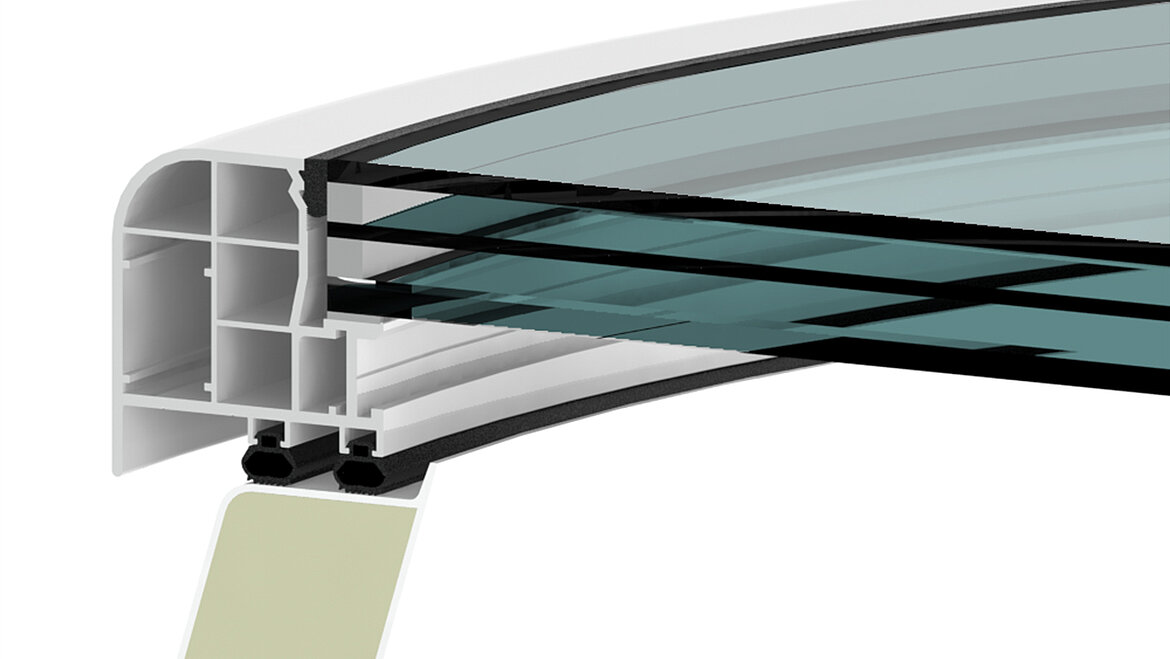

SOLAR PROTECTION GLAZING WITH MATT, LIGHT-COLOURED FILM (MHF)
TRIPLE TSG, 30/60
- Ug-value: approx. 0,6 W/(m2K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 37%
- Energy transmission: approx. 29%
AVAILABLE SIZES
| Order sizes (top roof edge size Ø) | ||
|---|---|---|
| 60 cm | 120 cm | |
| 80 cm | 150 cm | |
| 90 cm | 180 cm | |
| 100 cm |
UPSTANDS
- Available upstand heights: 30cm, 50cm and 70cm
- Jointless upstand
- Complies with DIN 18234 with no additional measures required
- Glass Skylight pre-assembled on the upstand, ex works

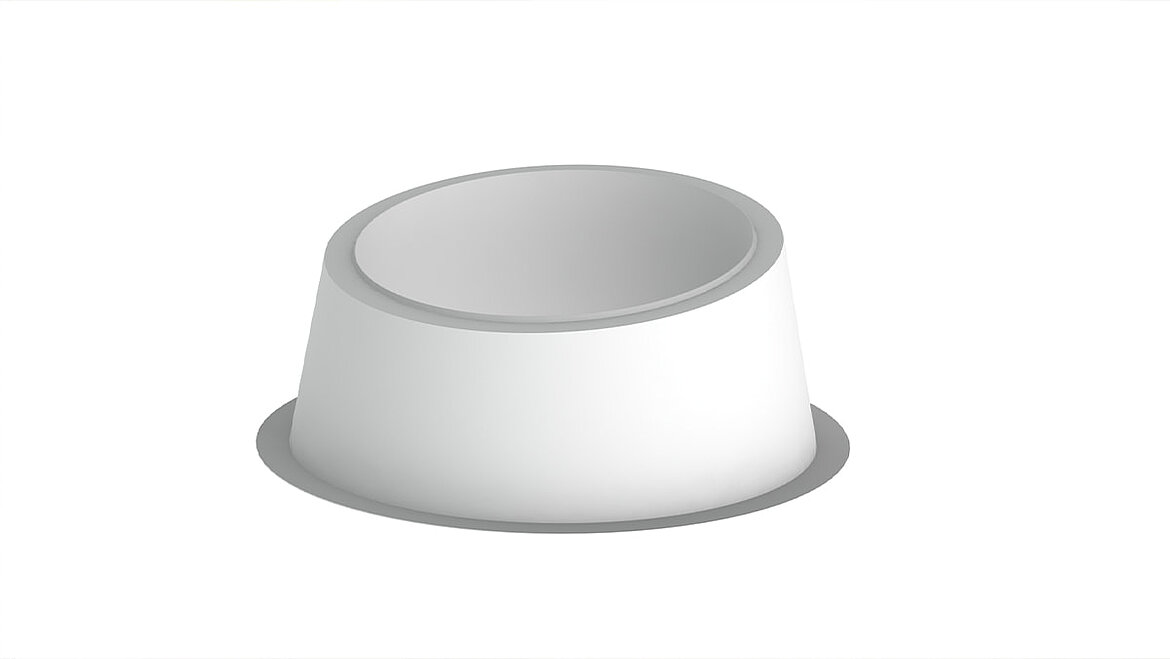

- The 5° inclination ensures unobstructed water drainage on the element
- Available with an upstand height of 50 cm
- Available for upper part sizes of 90/100/120/150/180 cm
ACCESSORIES
GLASS SKYLIGHT F100 CIRCULAR
VENTILATION UNITS

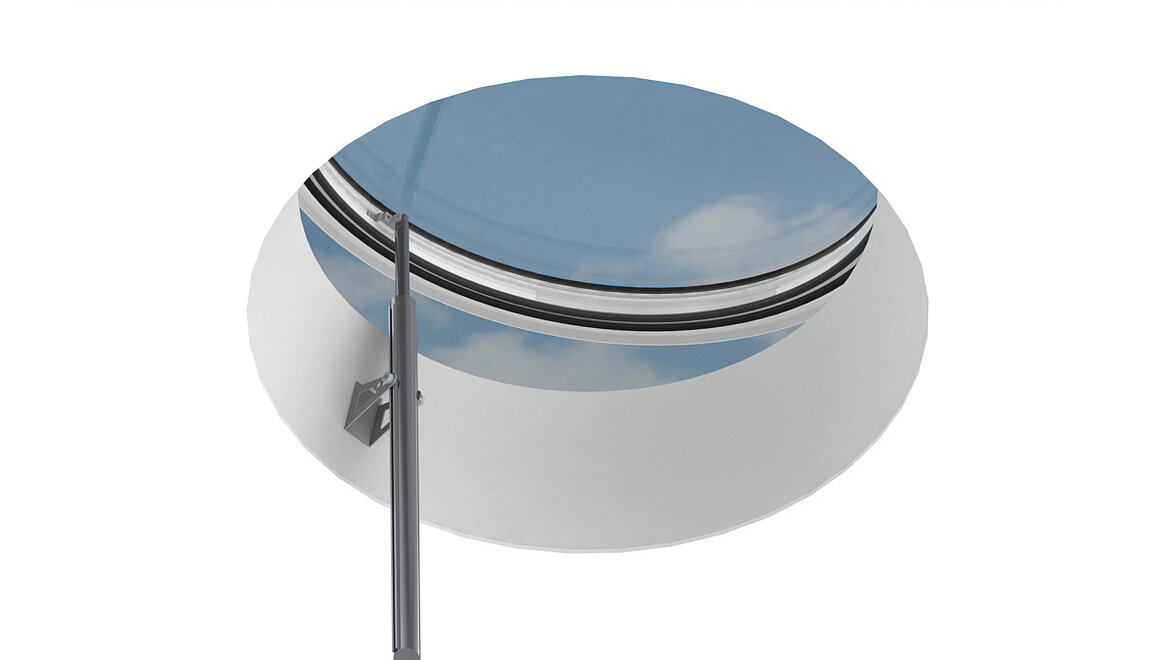

Spindle opener 24 V | solo

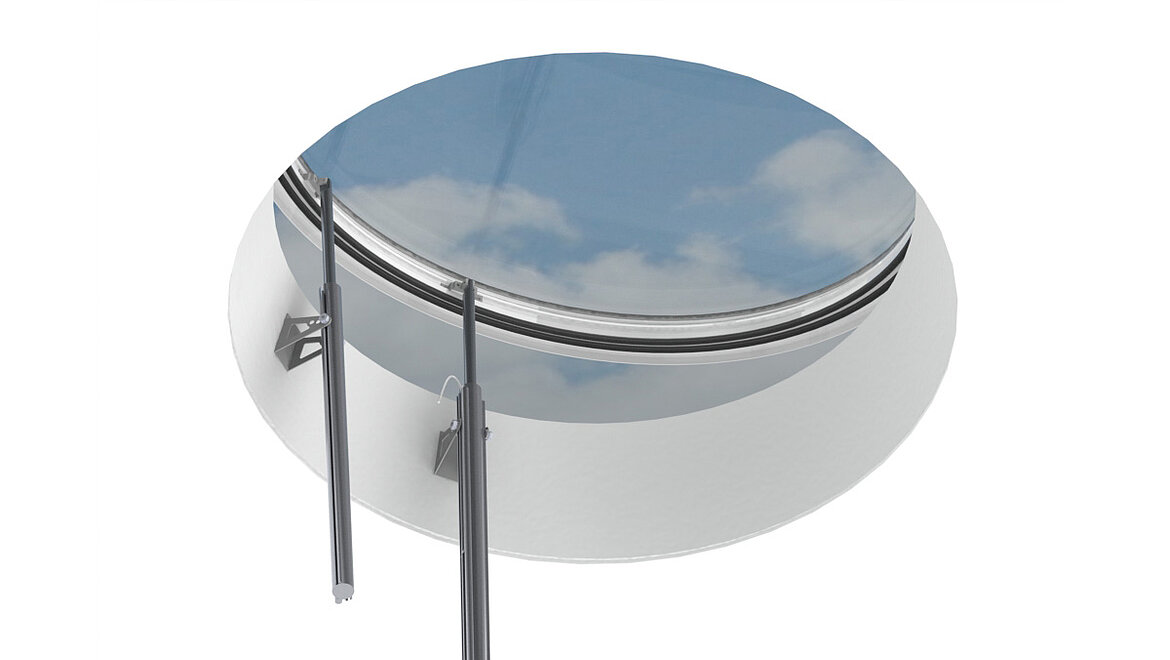

Spindle opener 24 V | tandem

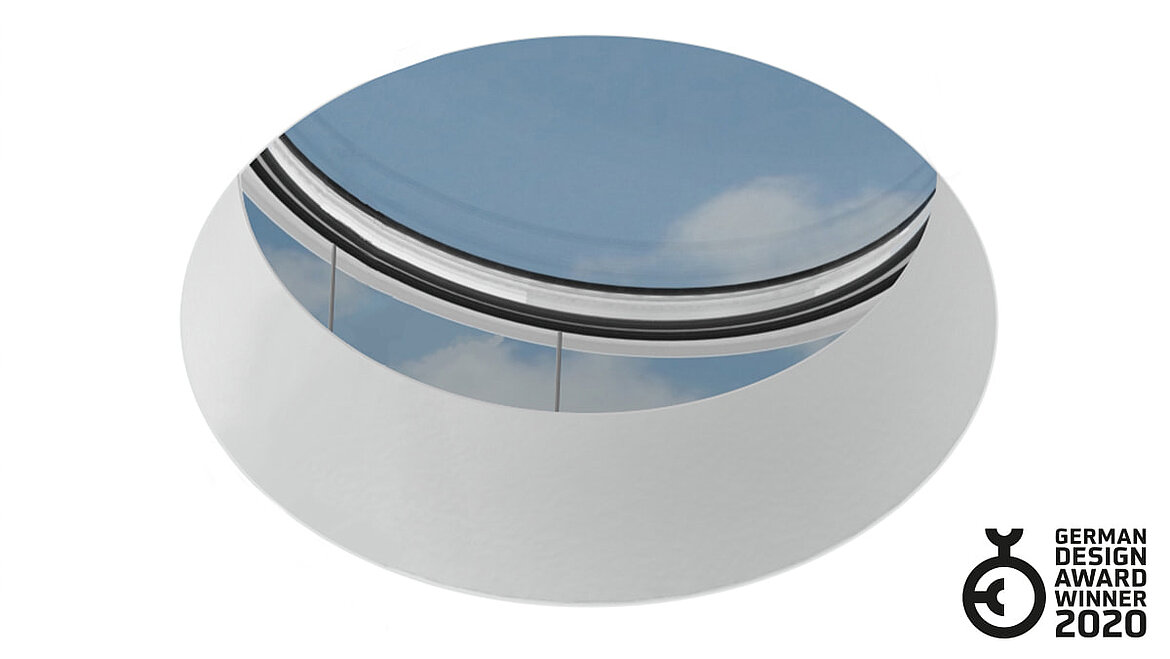

Chain drive 230 V concealed | tandemThe following models are available, depending on the size:
- 24 V - spindle opener solo
- 24 V - spindle opener tandem
- 230 V - chain drive tandem concealed
WIND AND RAIN SENSORS
- For automated opening and closing of the glass skylight in the event of wind and rain
- Operated as a group or individually
REED CONTACT
- Magnetic switch integrated into the frame profile for a contactless switching operation
- Signalling of opening position (closed / opened) of the daylight element
- Possible to connect to alarm system
