Apvalūs lygūs stoglangiai Lamilux FE
Gamintojas: LAMILUX
Produkto vadybininkas:
Tomas Juknis
Tomas Juknis
+370 687 21670
tomas.juknis@serfas.lt
Aprašymas
LAMILUX GLASS SKYLIGHT FE CIRCULAR
ELEGANT GLASS ELEMENT – MODERN, ENERGY-EFFICIENT AND DESIGN-FOCUSSED
ADVANTAGES AT A GLANCE
GLASS SKYLIGHT FE CIRCULAR
ENERGY EFFICIENCY
- High daylight incidence with numerous glazing types
- Available with double or triple glazing, TSG on the outside and LSG on the inside (LSG can be fitted with a clear or light-coloured matt film) with Ug-values of 1.1 to 0.6 W/(m²K)
- Outstanding airtightness thanks to the balloon double-sealing system: Performance class 4 – tested in accordance with EN 12207
- Optimal thermal insulation thanks to the overall structure free of thermal bridges
- Intelligent controls for natural ventilation
- Life-cycle assessment made easy: A comprehensive environmental declaration as per DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025 is available for the LAMILUX Glass Skylight FE
COMFORT
- NEW: Upstands with 5° inclination for optimised self-cleaning available
- Pleasant indoor climate thanks to natural ventilation
- Effective soundproofing of glazing types (DIN EN ISO 140-3 up to 45 dB)
- Daylight element and upstand are fully pre-assembled at the factory and locked. This means they can be retrofitted with an opener system at any time.
- Our LAMILUX Glass Skylight FE Circular is BIMready – Download at bimobjects.com
SAFETY
- Approved fall-through protection
- Minimised risk of condensation on the glazing’s interior and on the frame profile
- Anti-burglary protection: Also available with resistance class 2
- Resistance to external fire exposure from flying sparks and radiating heat with classification B, roof (t1) as per DIN EN 13501-5
DESIGN
- Discreet appearance from inside and outside
- Wide variety of colours based on RAL system (surrounding profile)
THE VARIANTS
GLASS SKYLIGHT FE CIRCULAR
Glass Skylight FE CircularGLAZING TYPES

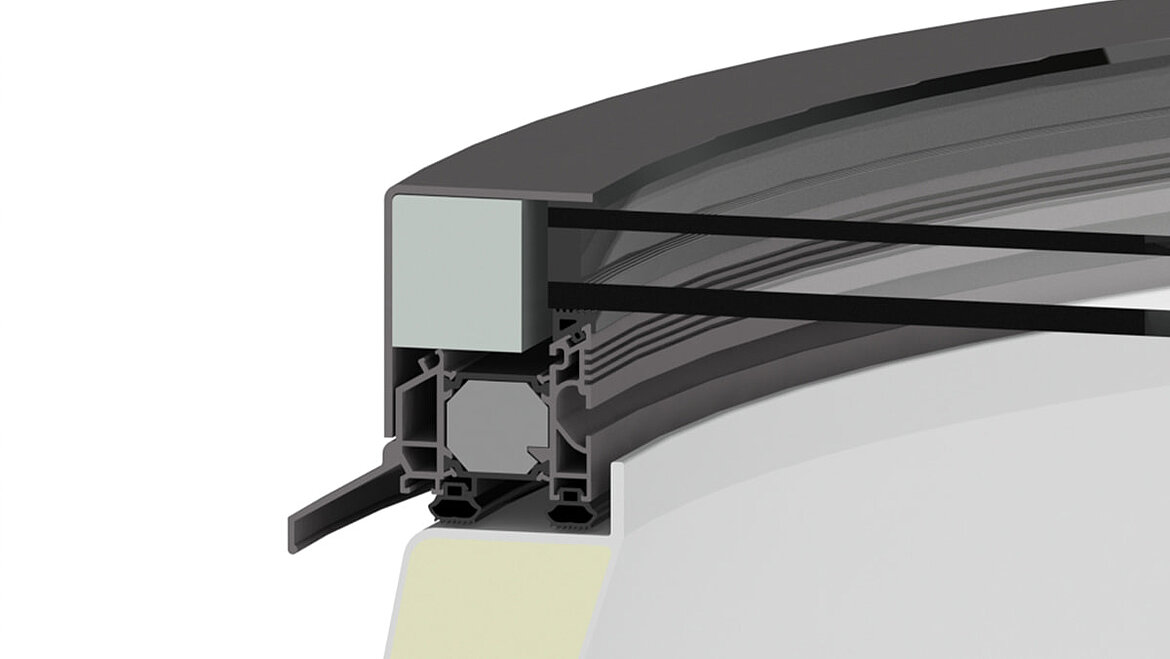

HEAT PROTECTION INSULATION GLAZING
DOUBLE
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 80 %
- Energy transmission: approx. 62 %

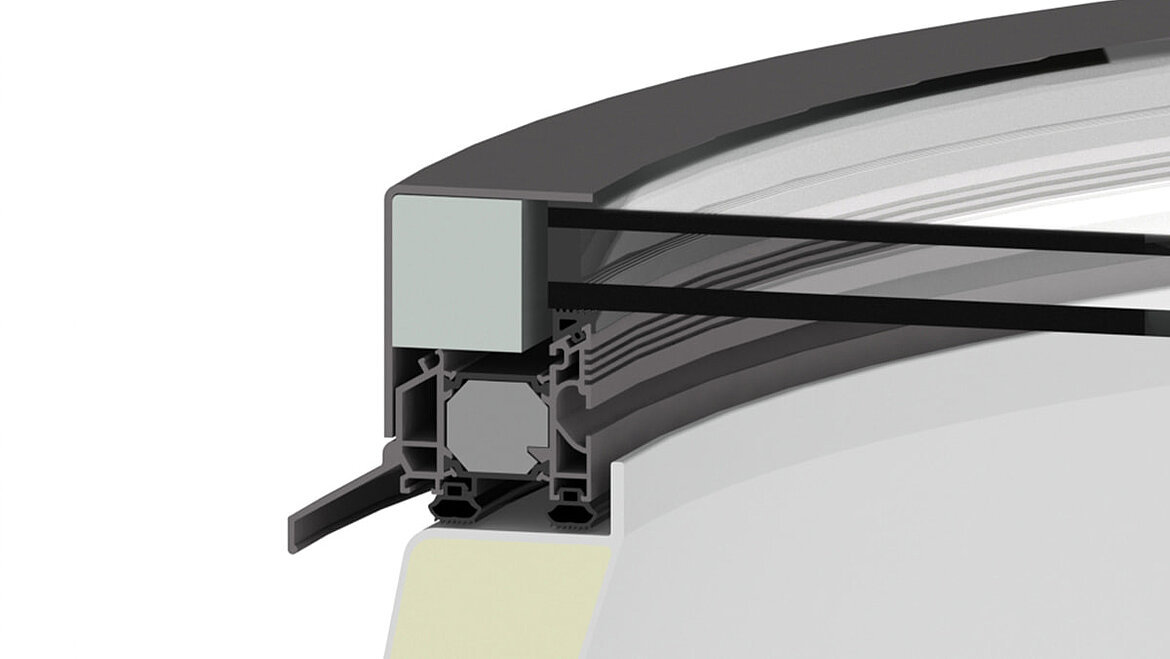

HEAT PROTECTION INSULATION GLAZING WITH MATT, LIGHT-COLOURED FILM (MHF)
DOUBLE
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 54 %
- Energy transmission: approx. 59 %

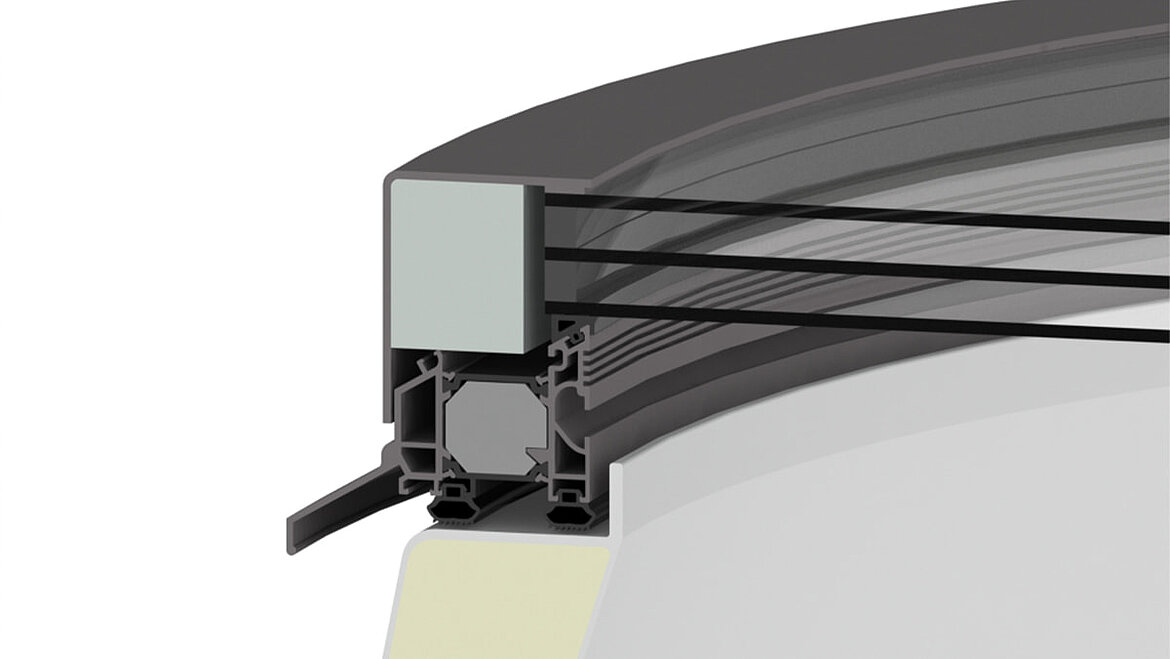

HEAT PROTECTION INSULATION GLAZING
TRIPLE (ALSO AVAILABLE AS MHF)
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 72 %
- Energy transmission: approx. 51 %

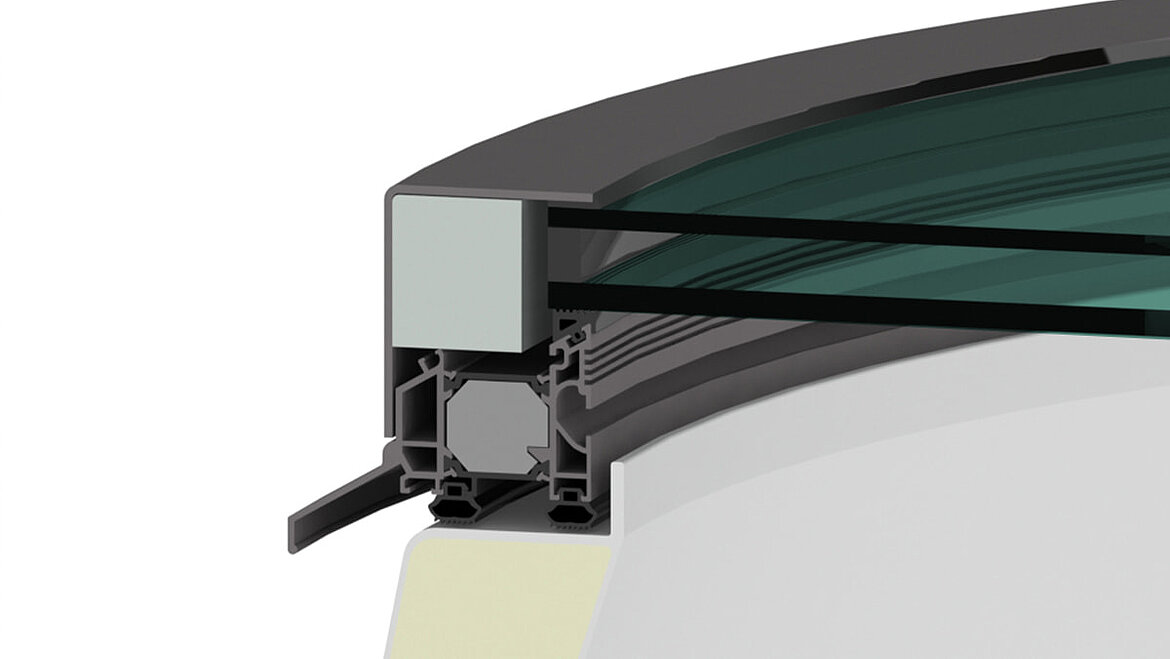

SOLAR PROTECTION INSULATION GLAZING
DOUBLE 60/30
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 61 %
- Energy transmission: approx. 30 %

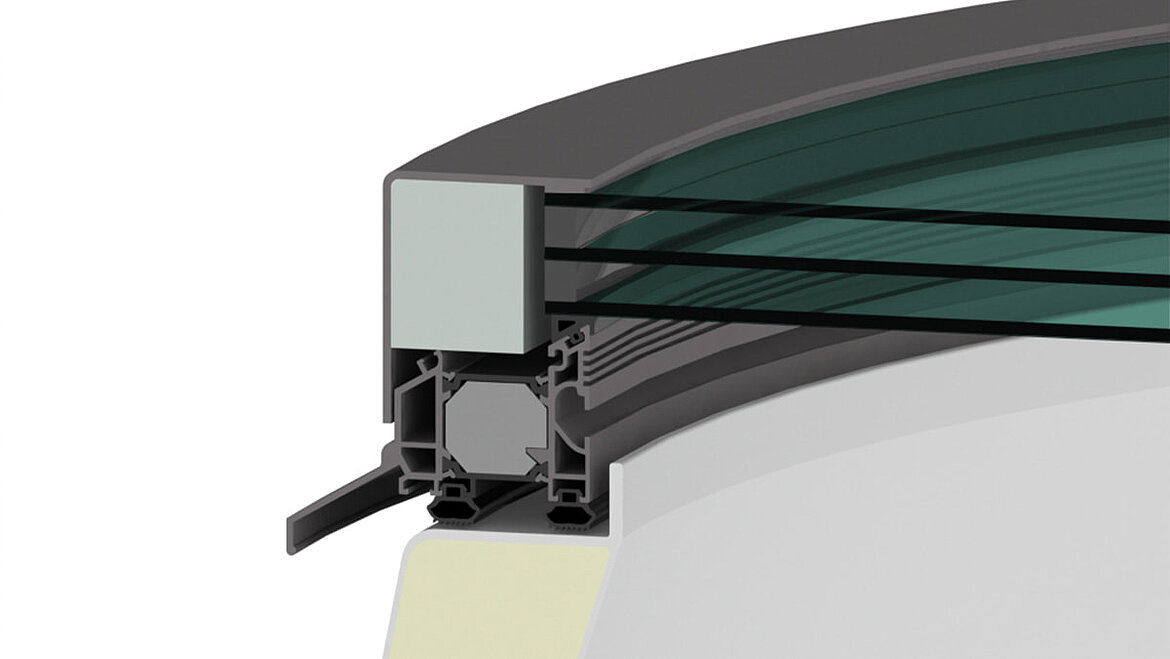

SOLAR PROTECTION INSULATION GLAZING
TRIPLE 60/30
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 55 %
- Energy transmission: approx. 28 %
AVAILABLE SIZES
| Order Sizes (Top Roof Edge Size Ø) | |
|---|---|
| 90 cm | 180 cm |
| 100 cm | 200 cm |
| 120 cm | 220cm |
| 150 cm |
UPSTANDS
- Available upstand heights: 30 cm, 50 cm and 70 cm
- Seamless upstand
- Complies with DIN 18234 without additional measures
- Optionally available with a concealed chain drive for a smooth interior
- Glass Skylight pre-mounted on the upstand ex works
- The 5° inclination ensures unobstructed water drainage on the element
- Available with an upstand height of 50 cm
- Available for upper part sizes of 90/100/120/150/180 cm
ACCESSORIES
GLASS SKYLIGHT FE CIRCULAR
VENTILATION UNITS
Spindle opener 24 V | solo
Spindle opener 24 V | tandem
WIND AND RAIN SENSORS
- For automated opening and closing of the Glass Skylight in the event of wind and rain
- Operated as a group or individually
REED CONTACT
- Magnet switch integrated into the frame profile for a contactless switching operation
- Indication of the opening position (closed/open) of the daylight element
- Option to connect to an alarm system
