Kupoliniai stoglangiai Lamilux F100
Gamintojas: LAMILUX
Produkto vadybininkas:
Tomas Juknis
Tomas Juknis
8 687 21670
tomas.juknis@serfas.lt
Aprašymas
BENEFITS AT A GLANCE
ROOFLIGHT F100
ENERGY EFFICIENCY
- The Rooflight F100 meets all the requirements of the German Energy Performance of Buildings Directive of 2014
- Fully insulated GRP upstand with a U-value of 0.9 W/m²K
- Perfect thermal connection, such as a thermal insulated base flange
- Design completely free of thermal bridges for optimum U-values and reduced risk of condensation
- Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Rooflight F100 in accordance with ISO EN 15804
STABILITY
- NEW: The world’s first Rooflight F100 with certified watertightness in heavy rain and during storms (DRI 3.0 m²/s with a reference size of 120 x 120 cm)
- Tested and classified according to EN 1873 - 2014 (first European product standard for Rooflights) – e.g. for wind and snow load bearing capacity

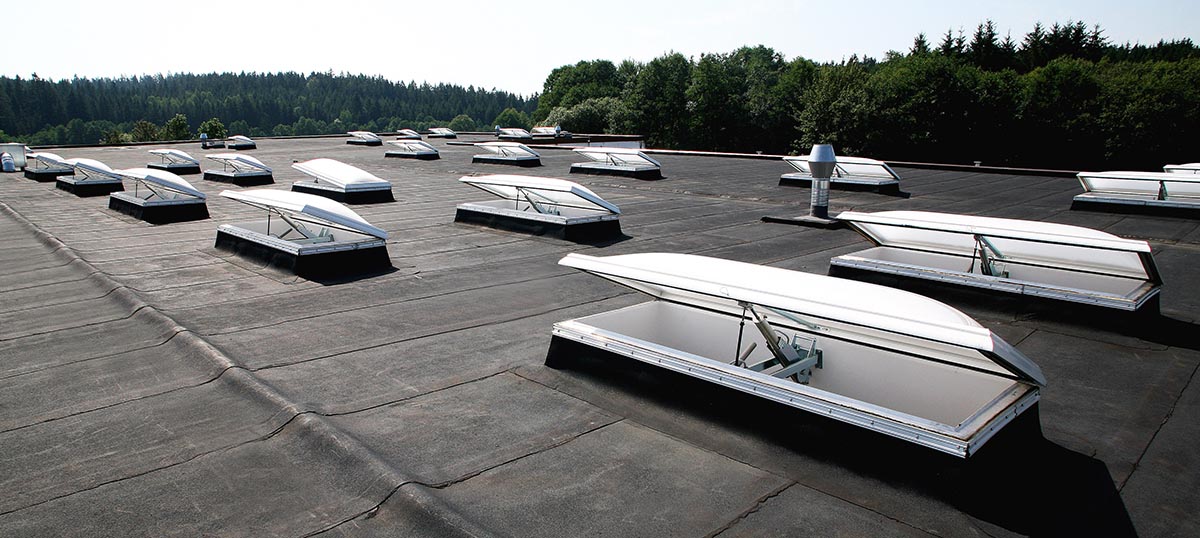

SAFETY & SHEV
- Preventive fire protection: Compliance with DIN 18234 – Prevention of fire spread on the roof without additional measures such as gravel fill
- Meets the requirements of EN 12101-2 for smoke and heat exhaust ventilation units
- Improved sound insulation and protection against driving rain
- Do you want to use the Rooflight F100 as a SHEV? If so, please click here.
COMFORT
- NEW: Our Rooflight F100 is BIM-ready – Download at bimobject.com
- The Rooflight F100 can be ventilated when locked by default – ventilation units can be retrofitted at any time
- Safe and easy installation in different roof types and roof sealing systems
Optional: Aluminium and steel sheet upstands
VARIANTS
ROOFLIGHT F100
GLAZING TYPES
Our range of glazing options for the Rooflight F100 system takes into account individual aspects according to the following requirements:
- Incidence of daylight – Transparency and light diffusion
- Energy efficiency / thermal insulation
- Sun protection / protection against heat
- Sound insulation
- Self-cleaning
- Safety – Fall-through protection system and burglar-proof
GLAZING MATERIALS
- Composite
- Glass-fibre reinforced composite (hard roofing – resistant to flying sparks and radiating heat according to DIN 4102-7)
- Impact-resistant composite
Optional:
- Rooflight F100 as a dark flap / GRP sandwich panel (thermal insulated, opaque)
- Sun protection glazing (e.g. heatstop)

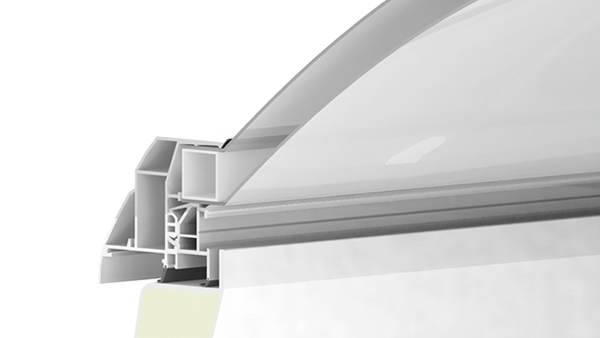

DOUBLE GLAZING
- Ut value: approx. 2.7 W/(m²K)
- Sound insulation value: approx. 20 dB
- Light transmittance: approx. 70%

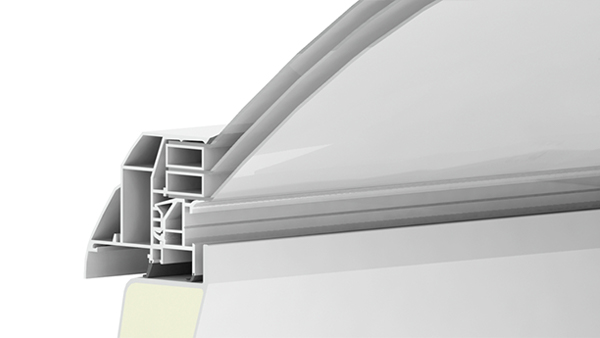

TRIPLE GLAZING
- Ut value: approx. 1.8 W/(m²K)
- Sound insulation value: approx. 22 dB
- Light transmittance: approx. 59%

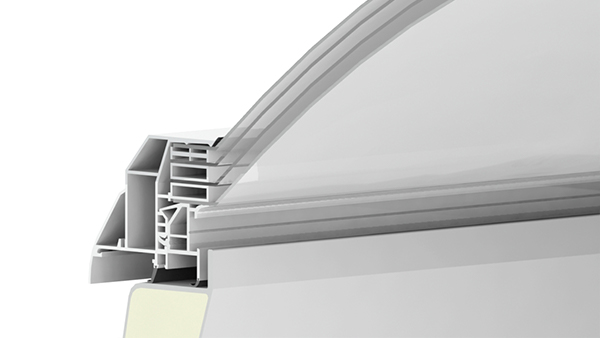

QUADRUPLE GLAZING
- Ut value: approx. 1.5 W/(m²K)
- Sound insulation value: approx. 22 dB
- Light transmittance: approx. 63%

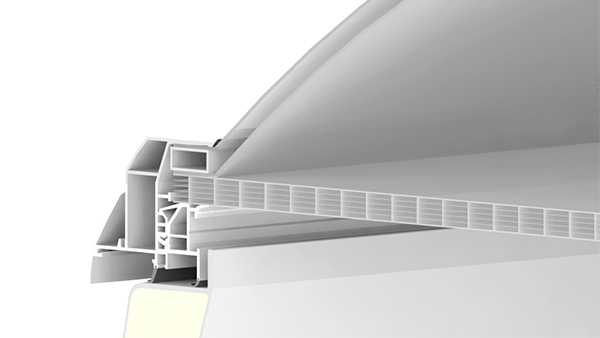

DOUBLE GLAZING + PC 16
- Ut value: approx. 1.3 W/(m²K)
- Sound insulation value: approx. 25 dB
- Light transmittance: approx. 22%
MULTI-CHAMBER GLAZING PC 10
- Ut value: approx. 2.5 W/(m²K)
- Sound insulation value: approx. 20 dB
- Light transmittance: approx. 61%

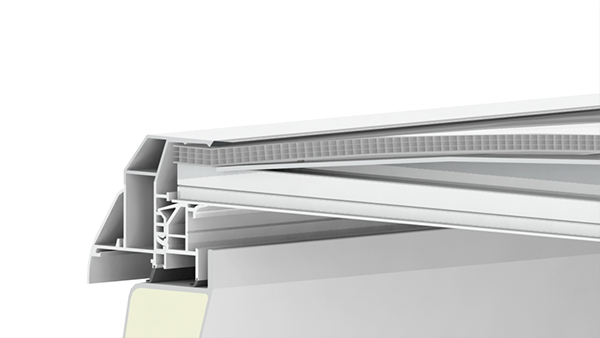

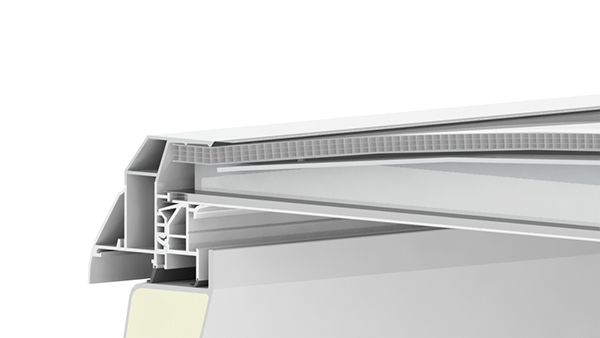

MULTI-CHAMBER GLAZING PC 10 + PC 6
- Ut value: approx. 1.4 W/(m²K)
- Sound insulation value: approx. 19 dB
- Light transmittance: approx. 46%
LAMILUX UPSTANDS
THE PERFECT CONNECTION FOR A WIDE RANGE OF ROOF TYPES
LAMILUX JOINTLESS GRP UPSTAND
- Available with upstand heights of 15, 30, 40 and 50 cm
- Seamless upstand
- Complies with DIN 18234 without additional measures
- Element pre-mounted on the upstand, ex works
IMPROVE LIGHT TRANSMISSION: LAMILUX REFLECTIVE
- The light transmittance of the daylight element is increased by up to 50% due to the patented principle of cladding with highly reflective aluminium material
- Up to 33% savings in energy used for artificial light
- Elegant surface finish gives high-quality interior appearance
LAMILUX STEEL SHEET UPSTAND
- Special composite connection profile avoids thermal bridges – unlike metal head profile frames
- Professional, mechanical connection to various types of roof sheeting
- Available with or without thermal insulation
- Height: 40 or 50 cm
- Coil coated in RAL 9010
- Steel sheet upstand: Fire class A1
LAMILUX GRP UPSTAND WITH ANGLED BASE FLANGE
- With double-sided angled base flange
LAMILUX ALUMINIUM UPSTAND
- For profiled and flat roofs
- Building-specific production
- Individual adjustment to the profile of the base flange
- Core-insulated upstand also available with a flat base flange
- Only suitable for buildings with thermotechnically requirements
- Base flange either flat or profiled (also available with heat insulation on underside, see image)
CONNECTION TECHNOLOGY USED IN LAMILUX UPSTANDS
UPSTAND CONNECTION DETAILS
LAMILUX HARD PVC CONNECTING RAIL
As an option, the hard PVC connecting rail can be laminated onto the base flange at the factory and seal-welded in the corners. High polymer PVC and VAE roof sheeting can be welded directly onto the base flange using an expanding air or hot air welding process. Shown with thermal insulated base flange.
LAMILUX CONNECTION SET
Consisting of fully deflected clamping profiles, incl. splash-proof fastening rivets.
For the mechanical fixing of roof seals pulled upwards on the upstand.
LAMILUX ADHESIVE-BONDED FLANGE
GRP upstands have a 12cm wide adhesive-bonded flange that facilitates the direct welding of bitumen sheets.

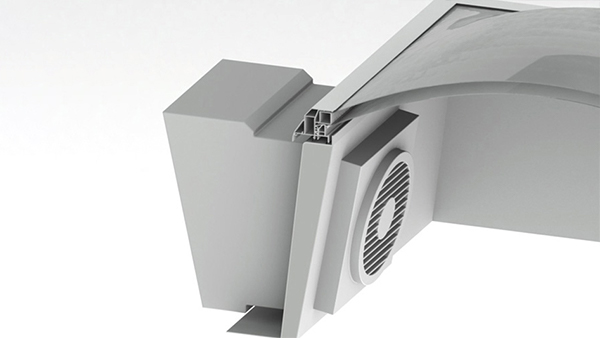

LAMILUX STAIRCASE SMOKE EXTRACTION
THE SIMPLE ALTERNATIVE FOR STAIRCASES
Our standard sets for smoke removal from staircases offer simple and easy staircase smoke extraction without costly SHEV calculations. Click here for more info.
ACCESSORIES
ROOFLIGHT F100

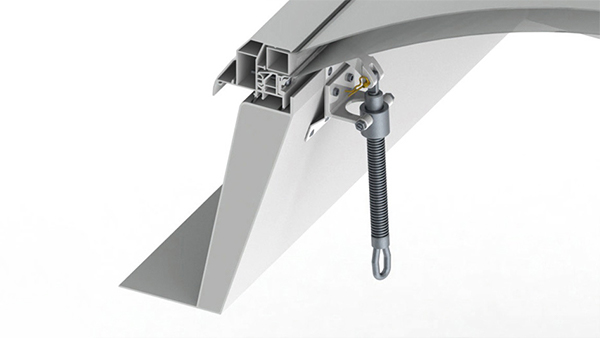

MANUALLY OPERATED WITH HAND CRANK
- Type AK (single-device design), type TAK (dual design)
- Stroke height: approx. 28cm
- Available hand crank lengths: 150cm, 200cm, extendable 175cm - 300cm and 250cm - 400cm

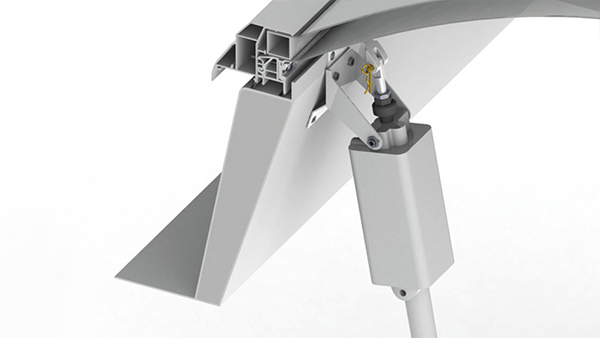

230V ELECTRIC MOTOR
- Type EM (single device or dual design)
- Voltage: 230 V
- Stroke height: 30 or 50cm
- Protection class: IP 54
- End position control and thermal overload protection

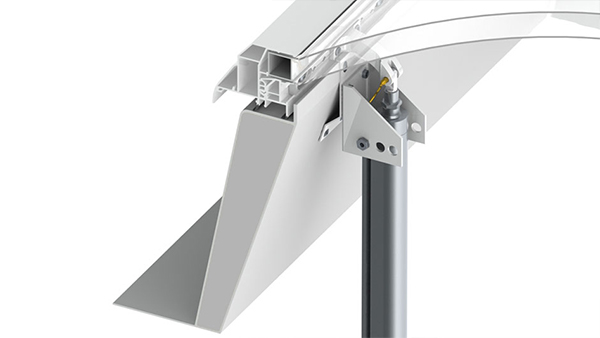

24V ELECTRIC MOTOR
- Type EM (single device or dual design)
- Integrated load cut-off in the motor
- Voltage: 24 V
- Stroke height: 30cm, 50cm or 75cm
- Protection class: IP 65

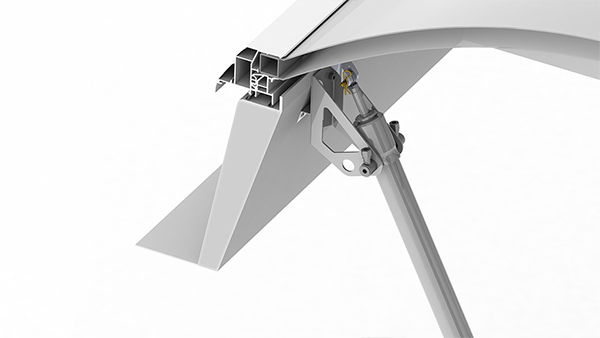

PNEUMATIC CYLINDER
- Type PZ (single device or dual design)
- Features an end position lock
- Required operating pressure: 8 bar
- Stroke heights: 30cm, 50cm or 70cm
NEW: SPOT WELDED FALL-THROUGH PROTECTION GRID
ALREADY PRE-ASSEMBLED AT THE FACTORY: FOR MORE TIME ON THE CONSTRUCTION SITE
- Element completely pre-mounted on the upstand, ex works
- Recesses for ventilation drives or SHEV fittings ex works
- Filigree appearance due to small retaining straps and thin bearing bars
- Permanent fall-through protection

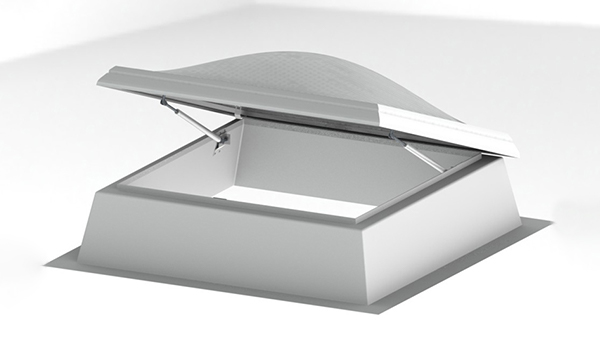

CONVENIENT ROOF EXIT AND ENTRY HATCHES
- Indispensable for maintenance and repair works on flat roofs
- Roof exit hatch can also be combined with either a ventilation function or entry hatch
- Opened manually (lever locking mechanism and telescopic damper)
- Optional electric motor operation (24 V with control panel) possible up to a size of 120cm x 240cm

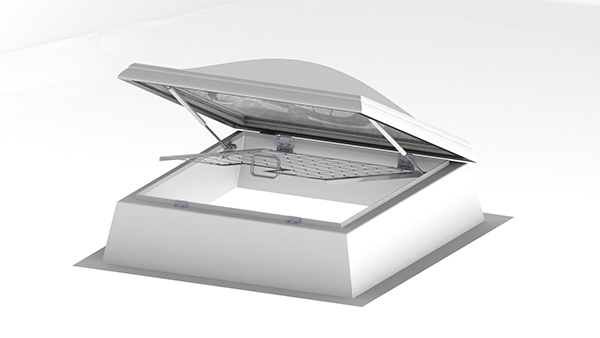

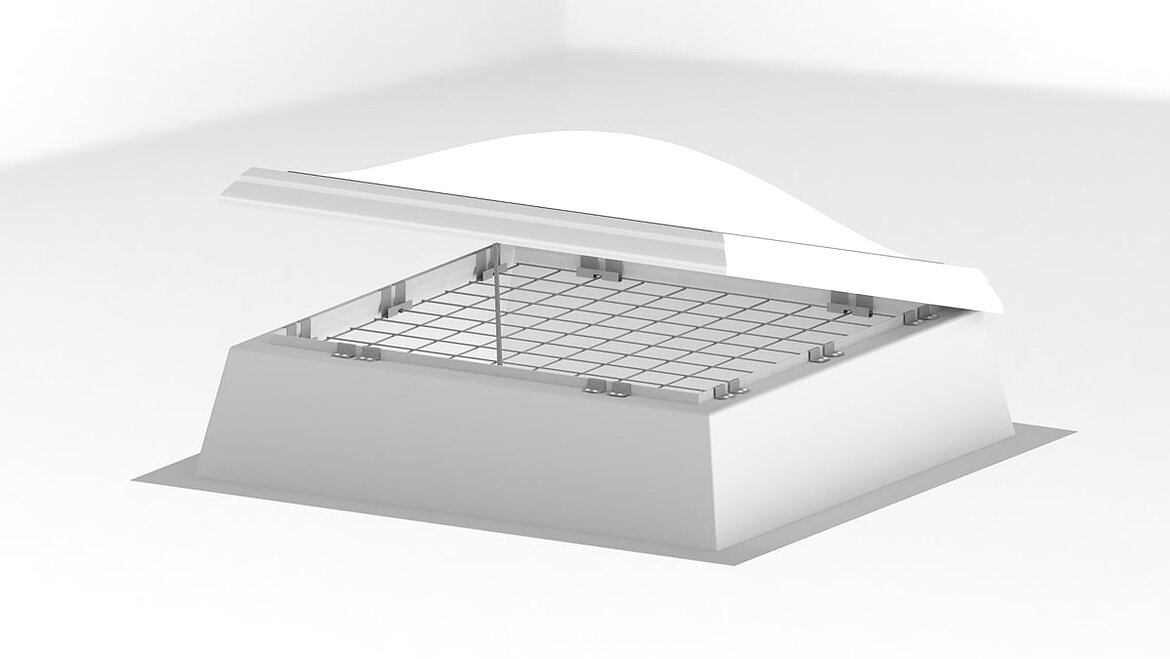

OPENABLE FALL-THROUGH PROTECTION GRID FOR ROOF EXIT
- Hinged fall-through protection grid for rooflight domes with roof exit function
- When closed, permanently fall-through proof according to GS-Bau 18

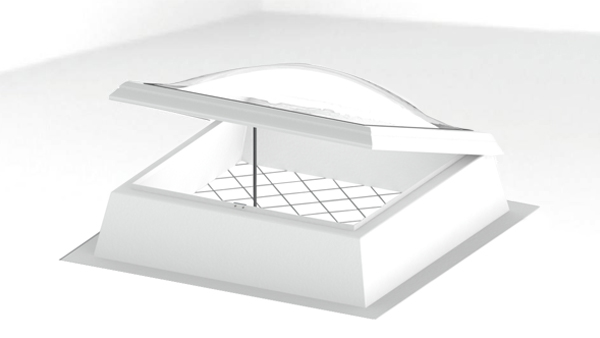

LASER-CUT FALL-THROUGH PROTECTION GRID
- Laser-cut fall-through protection grid made of galvanised sheet steel
- Improved appearance due to sheet steel
- Tested with 1,200 joules

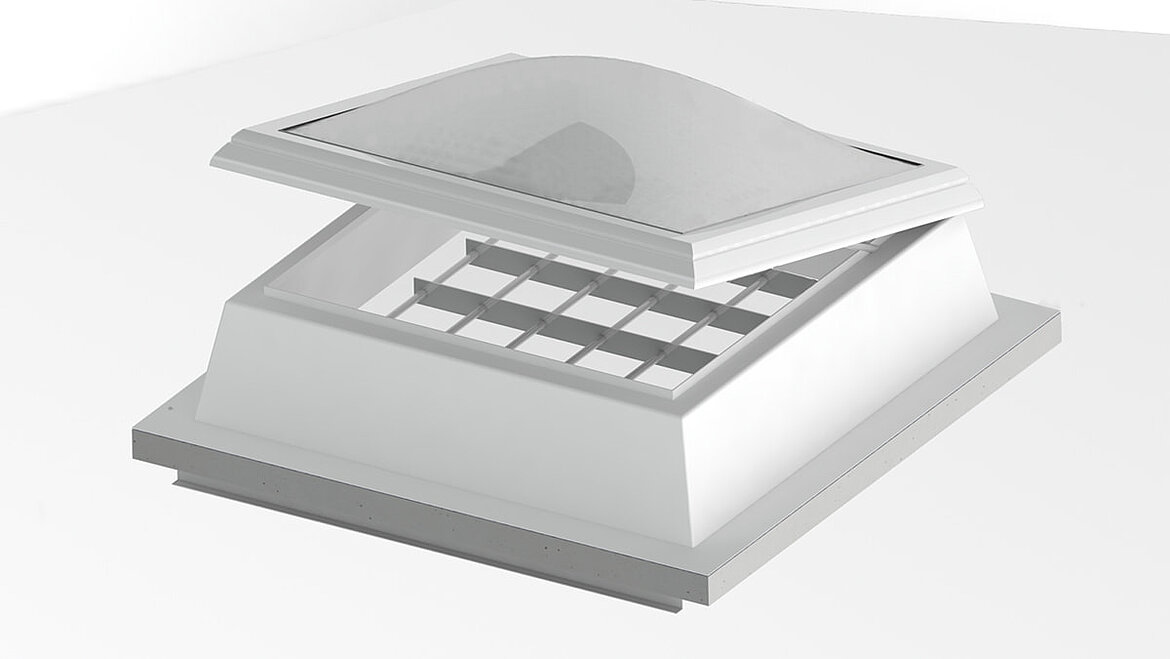

ANTI-BURGLARY GRID
- Permanent fall-through protection according to BG test certificate
- Intrusion-resistant according to ENV 1627

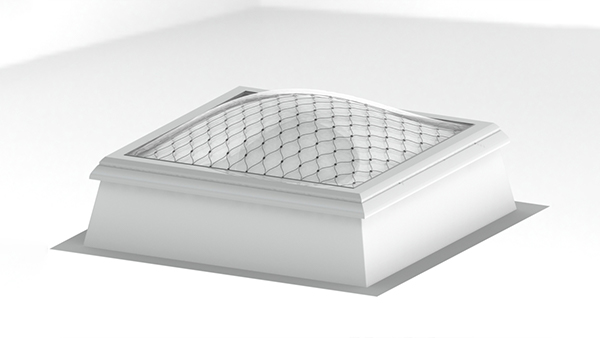

LAMILUX SAFETY NET
- Assembly between the glazing panes
- Almost complete lighting of the rooms located underneath
- Installation in double and triple layered rooflights possible
- From top roof edge size 80/80 cm to max. top roof edge size 200/350 cm
- Permanent fall-through protection

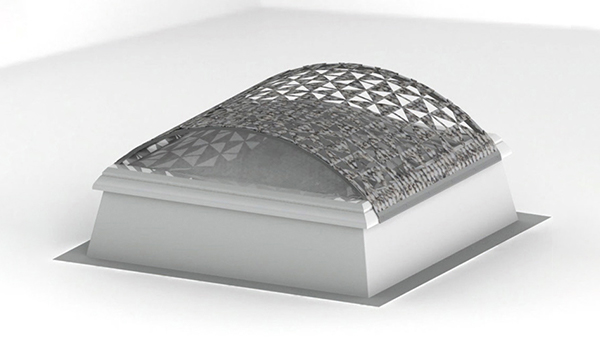

SUN PROTECTION WITH DECIDUOUS TREE EFFECT
- Metal screen (RAL colour coating on request)
- Hail protection
- Permanent fall-through protection

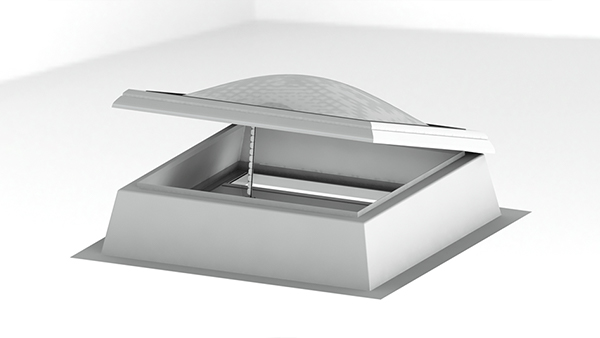

CONTROLLABLE SUN PROTECTION SYSTEM
- Interior sun protection, electrically powered
- Fastened onto the inside surface of the upstand

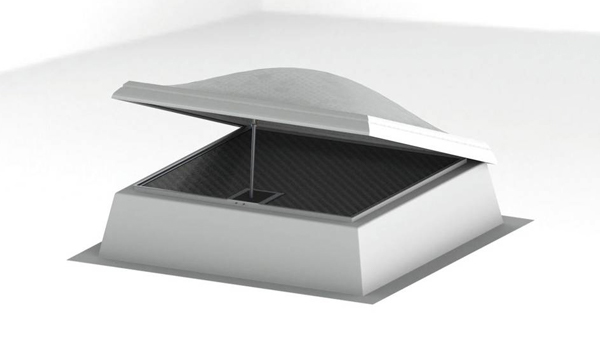

INSECT PROTECTION GRID
- Integrated into the upstand

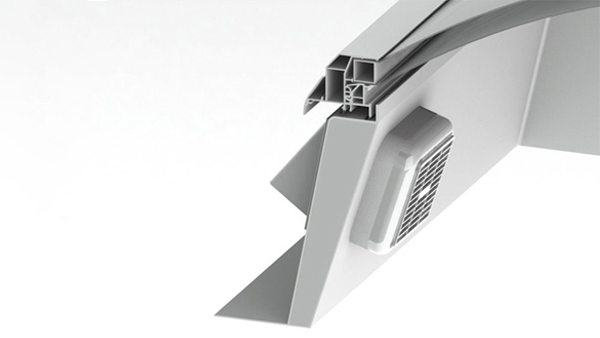

SMALL SPACE VENTILATOR
- Integrated into upstands with a height of 30, 40 and 50cm to provide ventilation
- Adjustable speed
- Weatherproof cover and integrated insect protection
- Air flow volume: 180 m³/h
- Protection class: IP34
VENTILATOR
- With weather protection hood
- For ventilation
- Integrated into a 50cm high upstand
- Air flow volume: 840 m³/h
- Protection class: IP44

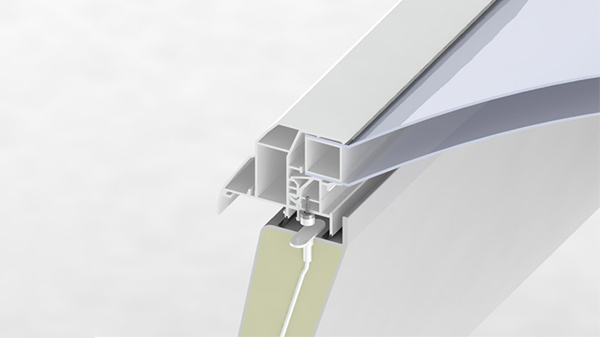

REED CONTACT
- Magnet switch integrated into the frame profile for a contactless switching operation
- Signalling of opening position (closed/open) of the daylight element
- Possible to connect to an alarm system

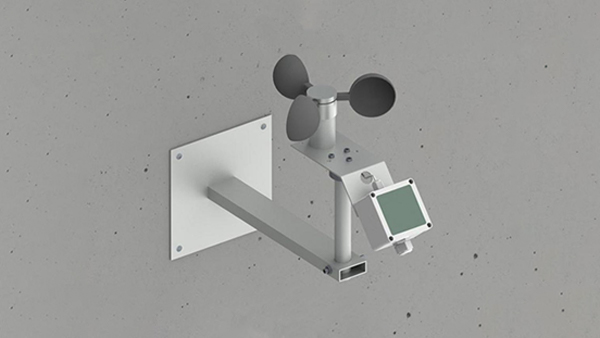

WIND AND RAIN SENSORS
- For automated opening and closing of Rooflights F100 in the event of wind and rain
ROOFLIGHT F100 IN ROUND VERSION
COMFORT
- NEW: The Rooflight F100 in round version is BIM-ready – Download at bimobject.com
- The Rooflight F100 is available as a rigid unit or with a 24 V electric motor
- Safe and easy installation in different roof types and roof sealing systems
FEATURES
- Rigid or ventilated versions available
- Double, triple and quadruple + PC glazing types
- Available diameters: 60cm, 80cm, 90cm, 100cm, 120cm, 150cm, 180cm
- Upstand heights: 30cm, 50cm, 70cm
- For more details on our Rooflight F100 in round version, contact our persons in charge
