Lygūs stoglangiai Lamilux FE 3°
Gamintojas: LAMILUX
Produkto vadybininkas:
Tomas Juknis
Tomas Juknis
8 687 21670
tomas.juknis@serfas.lt
Aprašymas
LAMILUX GLASS SKYLIGHT FE 3°
ANGLED ELEGANCE
QUALITY
- Optimal thermal insulation thanks to overall structure free of thermal bridges
- Intelligent controls for natural ventilation and sun protection blinds
- Optimised soundproofing and minimised rain noise
- Tightness against driving rain as per DIN EN 1027 = E (1950)
- Permeability to air in line with DIN EN 1026 = Class 4
- Resistance against wind load in line with DIN EN 12211 = C5
- Life-cycle assessment made easy: A comprehensive environmental declaration as per DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025 is available for the LAMILUX Glass Skylight FE 3°
DESIGN
- Uniform appearance
- Aesthetic, classical and elegant design language
- Stepless transition between frame profile and glazing
- Unobstructed drainage of water and dirt thanks to the element's 3° inclination
SAFETY
- Approved fall-through protection and accessibility for maintenance purposes as per DIN 18008-6
- Resistance to external fire exposure from flying sparks and radiating heat with classification B, roof (t1) as per DIN EN 13501-5
- High hail resistance thanks to TSG outer pane as a standard feature
USE
- Our LAMILUX Glass Skylight FE 3° is BIMready – Download at bimobjects.com
- Fully pre-assembled delivery of the element to the construction site
- Simple installation
- Efficient maintenance
THE VARIANTS
GLASS SKYLIGHT FE 3°: ALUMINIUM PROFILE
Glass Skylight FE 3°GLAZING TYPES
Our range of glazing takes into account different aspects on an individual basis
- Incidence of daylight – Transparency and light diffusion
- Energy efficiency/thermal insulation
- Sun protection/protection against heat
- Sound insulation
- Self-cleaning
- Permanently fall-through proof

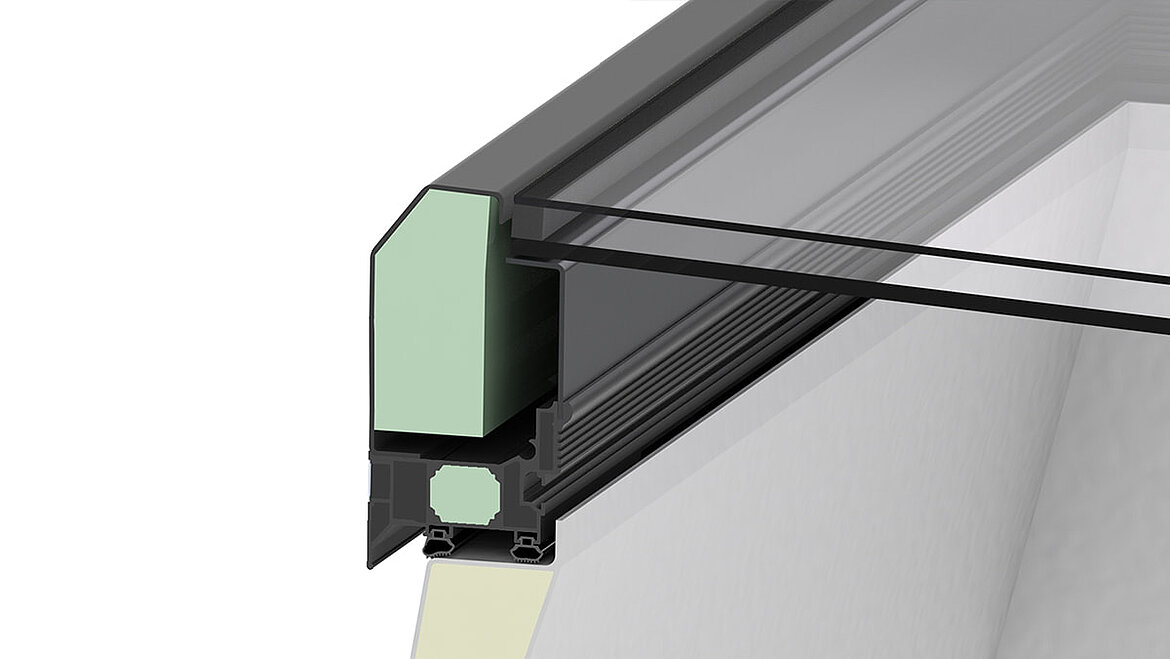

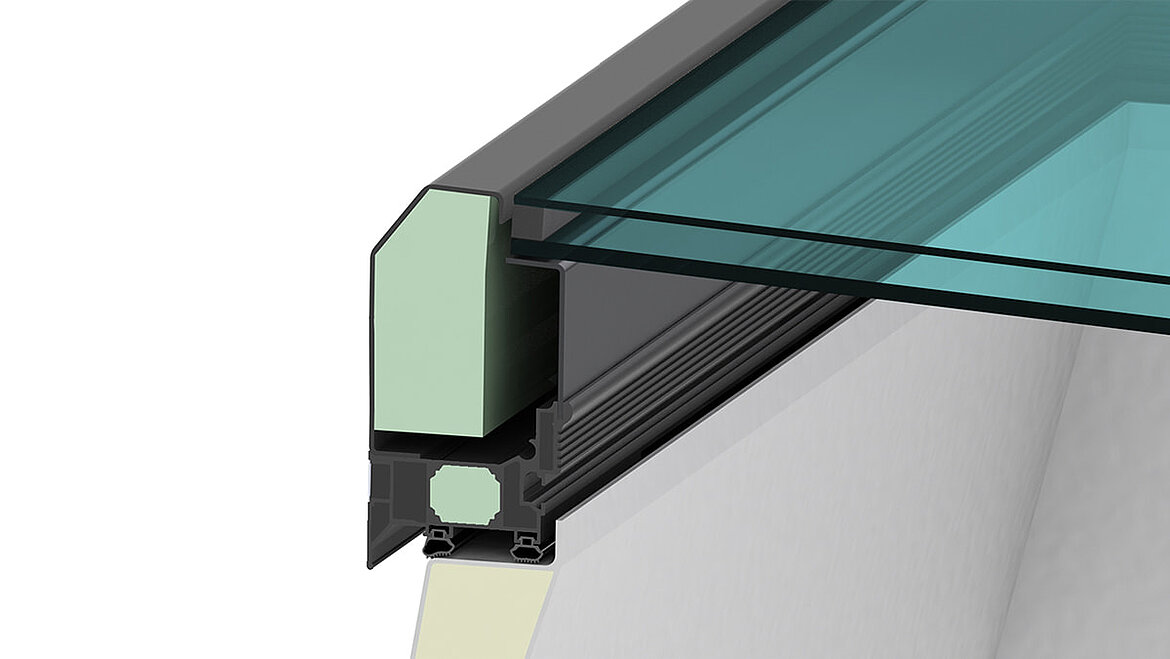

HEAT PROTECTION INSULATION GLAZING
W102 DOUBLE TSG
- Ug-value: approx. 1.1 W/(m2K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 80%
- Energy transmission: approx. 62%

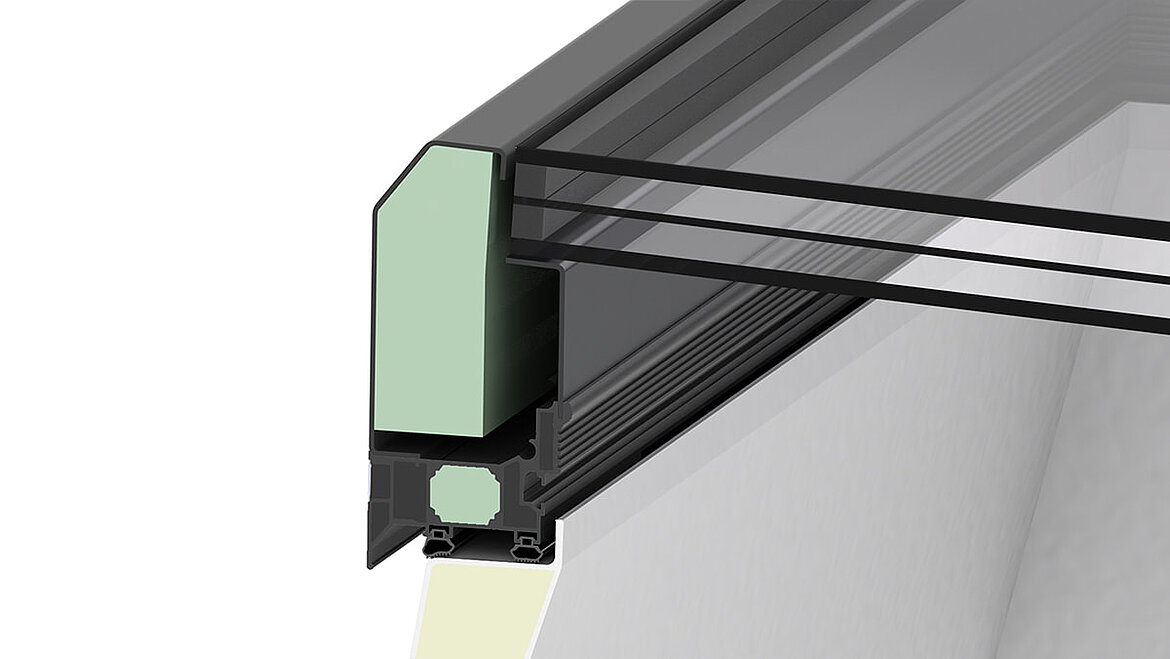

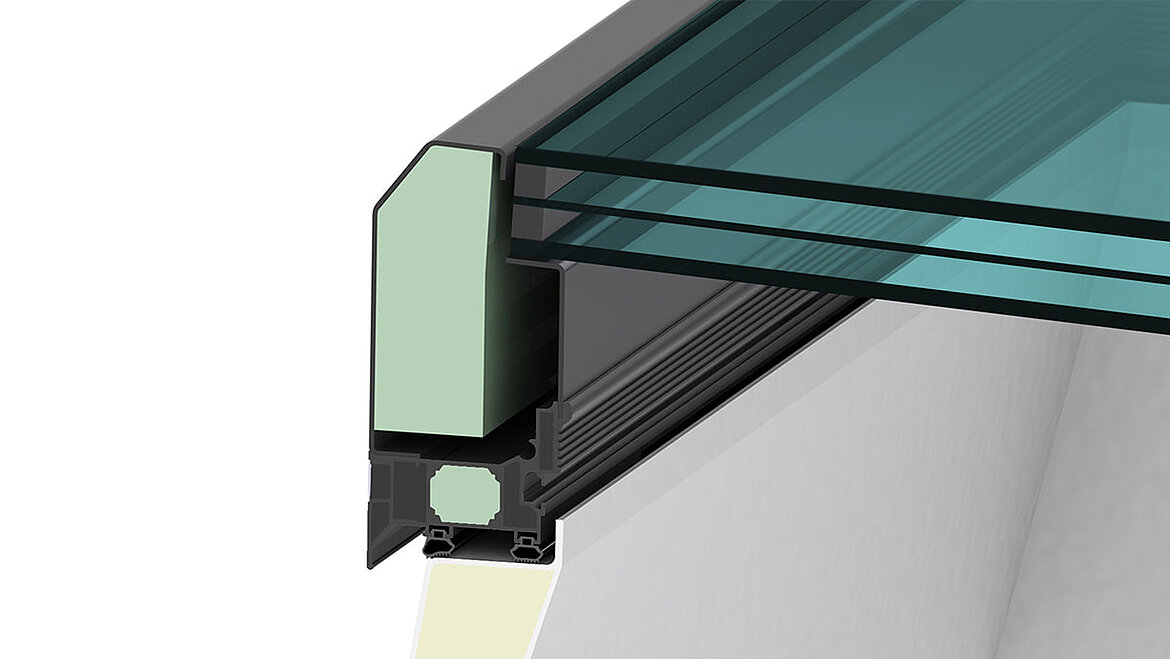

HEAT PROTECTION INSULATION GLAZING
110 TRIPLE TSG
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 72 %
- Energy transmission: approx. 51 %

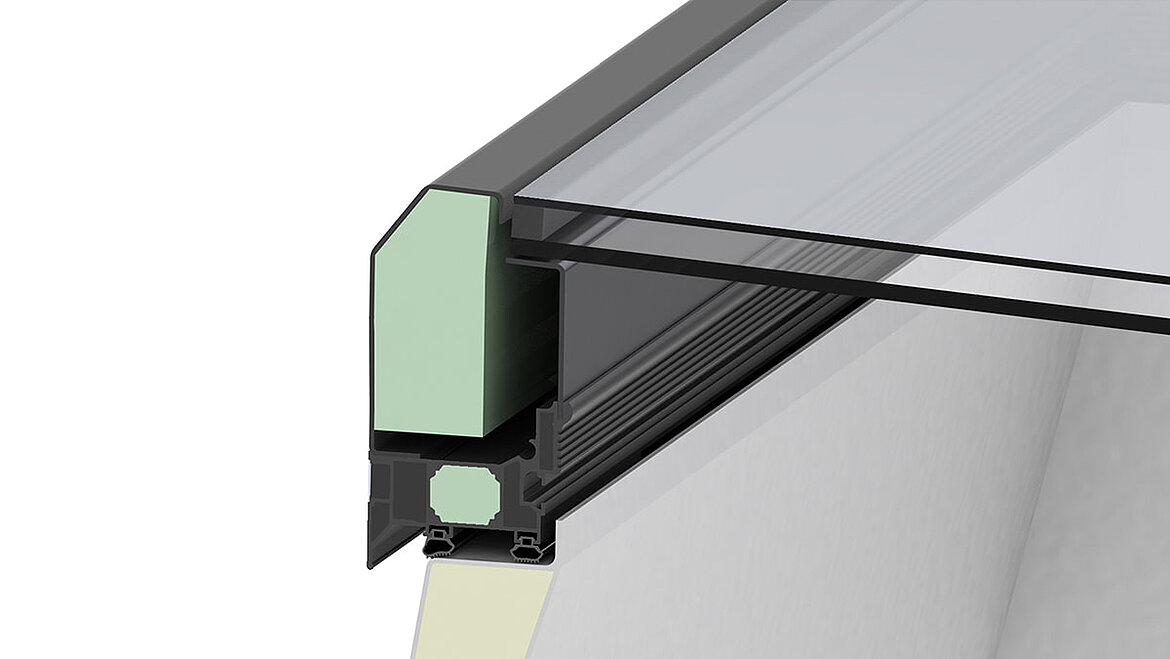

HEAT PROTECTION INSULATION GLAZING WITH MATT, LIGHT-COLOURED FILM (MHF)
W103 DOUBLE TSG
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 54 %
- Energy transmission: approx. 59 %

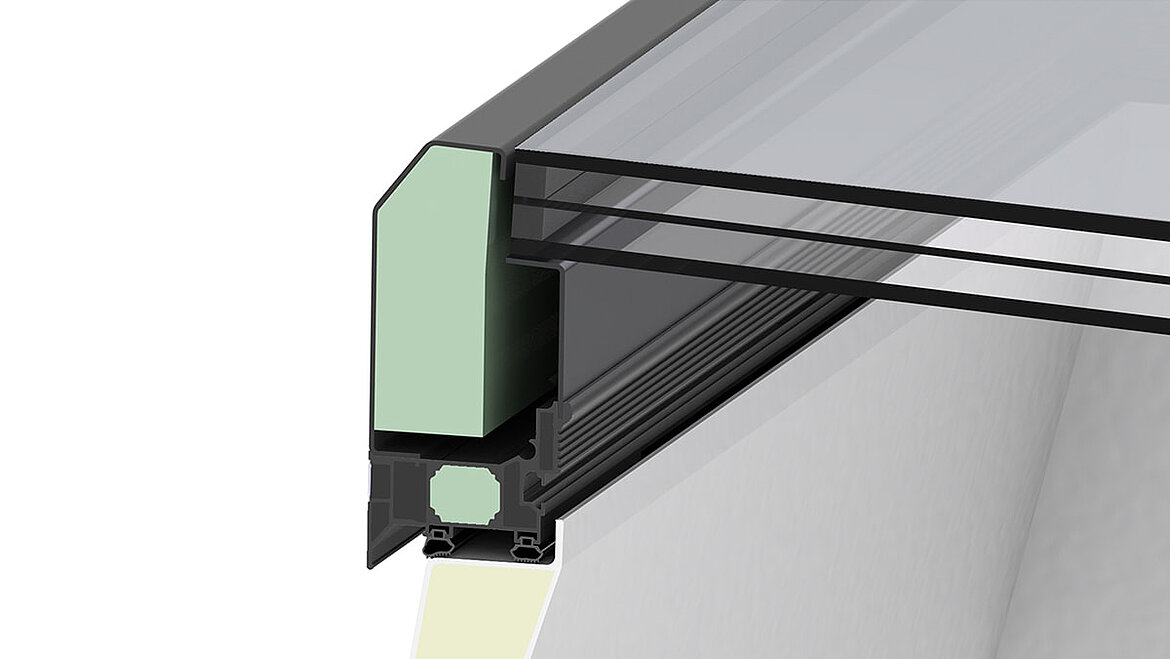

HEAT PROTECTION INSULATION GLAZING WITH MATT, LIGHT-COLOURED FILM (MHF)
W303 TRIPLE TSG
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 49 %
- Energy transmission: approx. 50 %
SOLAR PROTECTION INSULATION GLAZING
S109 DOUBLE 60/30 TSG
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 61 %
- Energy transmission: approx. 30 %

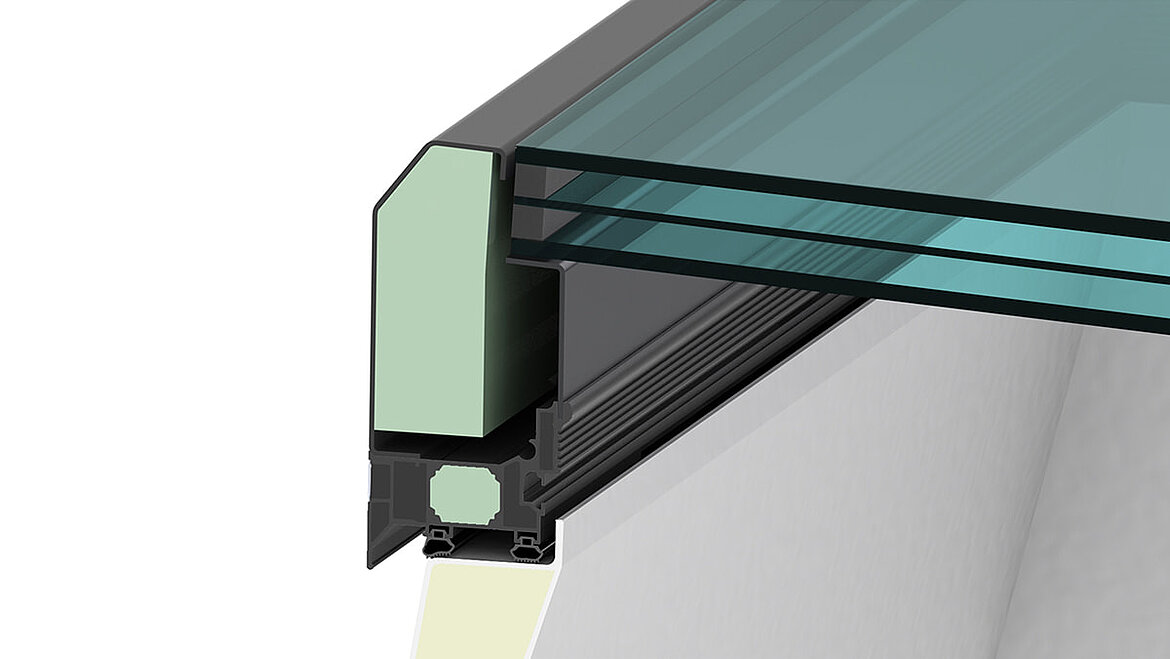

SOLAR PROTECTION INSULATION GLAZING
S117 TRIPLE 60/30 TSG
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 55 %
- Energy transmission: approx. 28 %

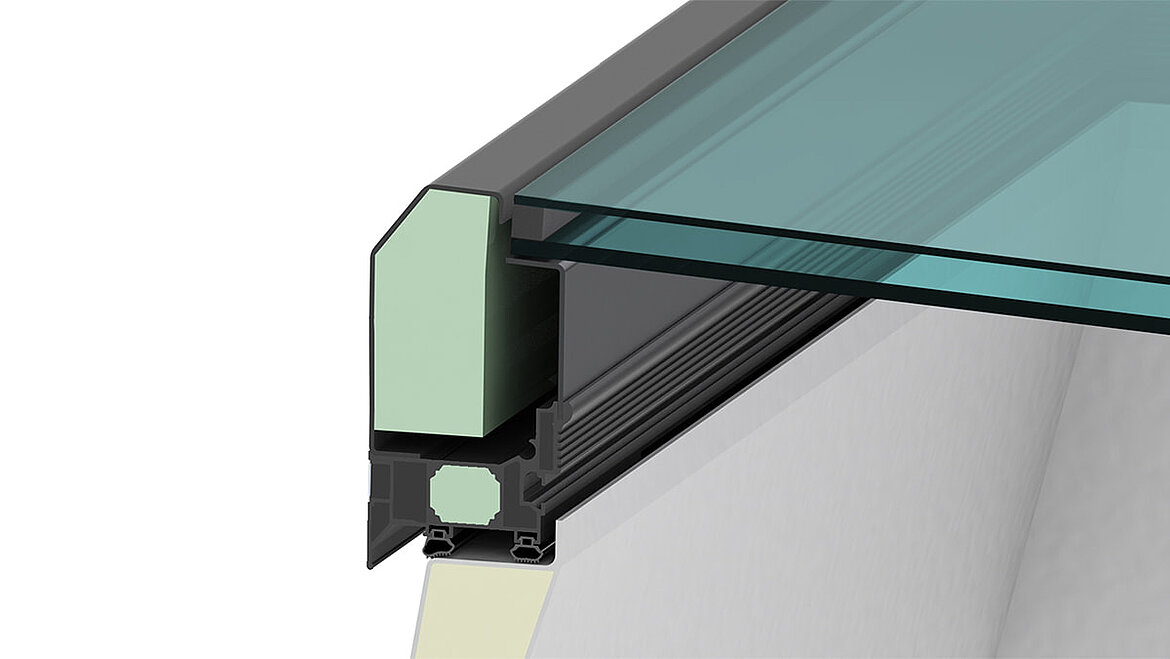

SOLAR PROTECTION INSULATION GLAZING WITH MATT, LIGHT-COLOURED FILM (MHF)
S101 DOUBLE 50/25 TSG
- Ug-value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 49 %
- Energy transmission: approx. 27 %
SOLAR PROTECTION INSULATION GLAZING WITH MATT, LIGHT-COLOURED FILM (MHF)
S121 TRIPLE 50/25 TSG
- Ug-value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 45 %
- Energy transmission: approx. 25 %

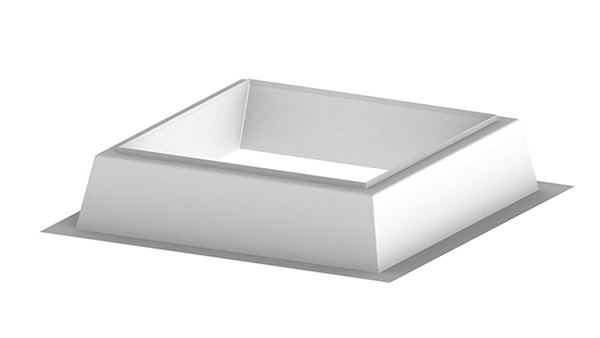

LAMILUX JOINTLESS GRP UPSTAND
- Available with upstand heights of 15, 30, 40 and 50 cm
- Seamless upstand
- Complies with DIN 18234 without additional measures
- Element pre-mounted on the upstand, ex works
CONNECTION TECHNOLOGY USED IN LAMILUX UPSTANDS
UPSTAND CONNECTION DETAILS
LAMILUX HARD PVC CONNECTING RAIL
As an option, the hard PVC connecting rail can be laminated onto the base flange at the factory and seal-welded in the corners. High polymer PVC and VAE roof sheeting can be welded directly onto the base flange using an expanding air or hot air welding process. Shown with thermal insulated base flange.
LAMILUX CONNECTION SET
Consisting of fully deflected clamping profiles, incl. splash-proof fastening rivets.
For the mechanical fixing of roof seals pulled upwards on the upstand.
LAMILUX ADHESIVE-BONDED FLANGE
GRP upstands have a 12cm wide adhesive-bonded flange that facilitates the direct welding of bitumen sheets.
ACCESSORIES
GLASS SKYLIGHT FE 3°: ALUMINIUM PROFILE
VENTILATION UNITS
The following models are available, depending on the size and weight of the glass

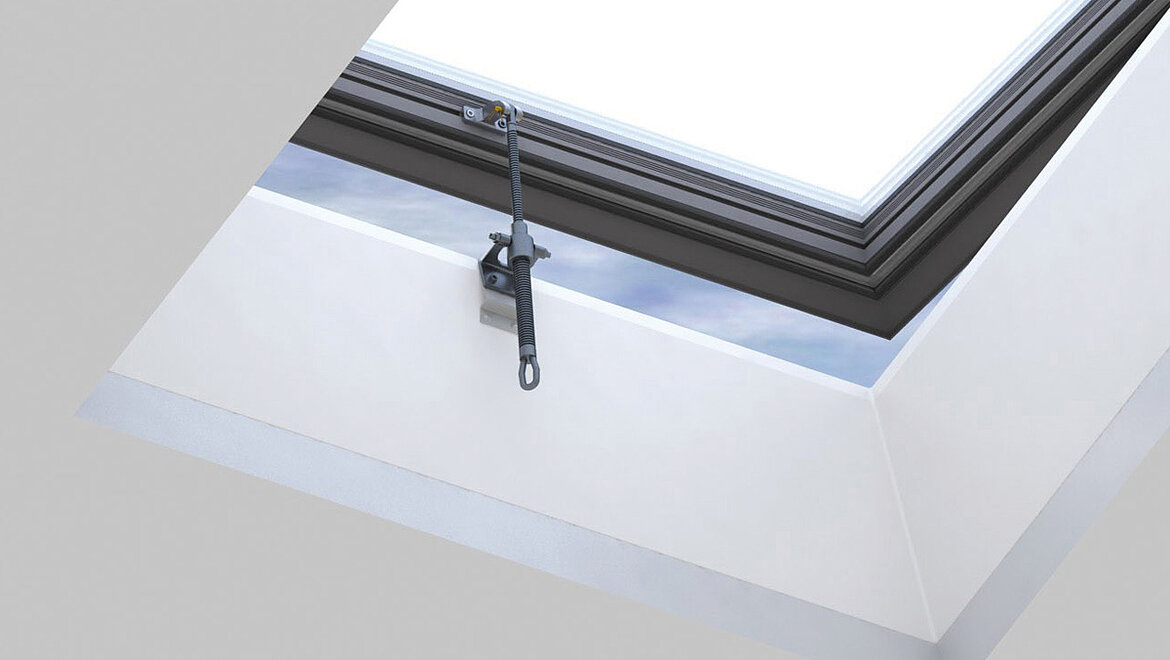

Manual opener

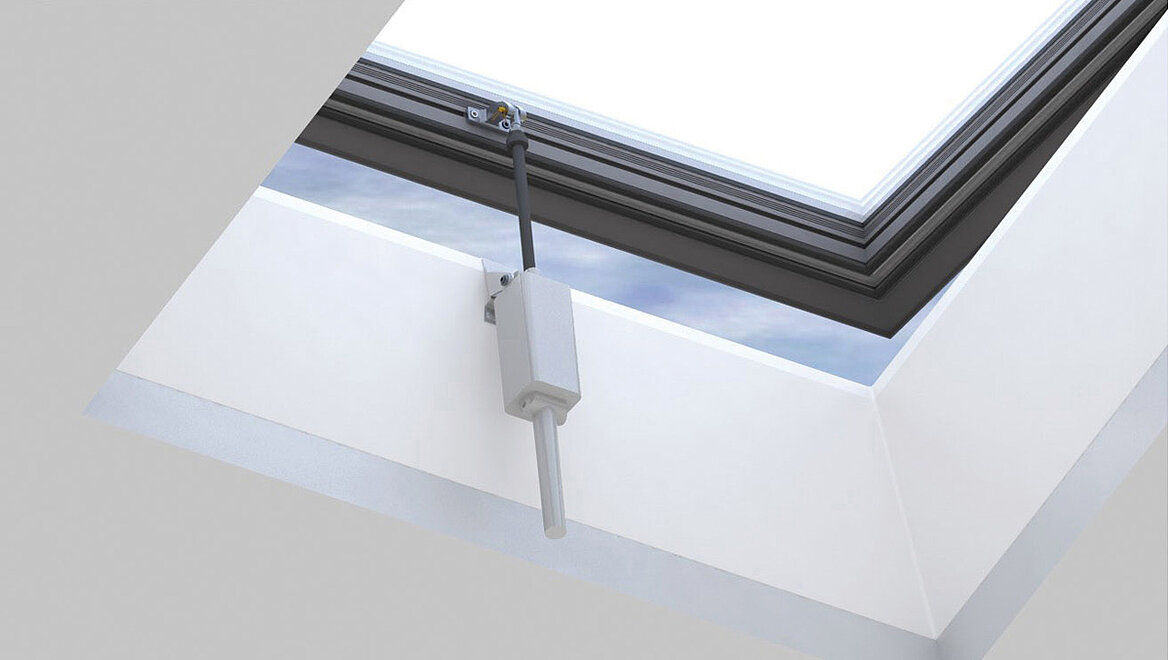

Spindle opener 230 V (24 V on request)

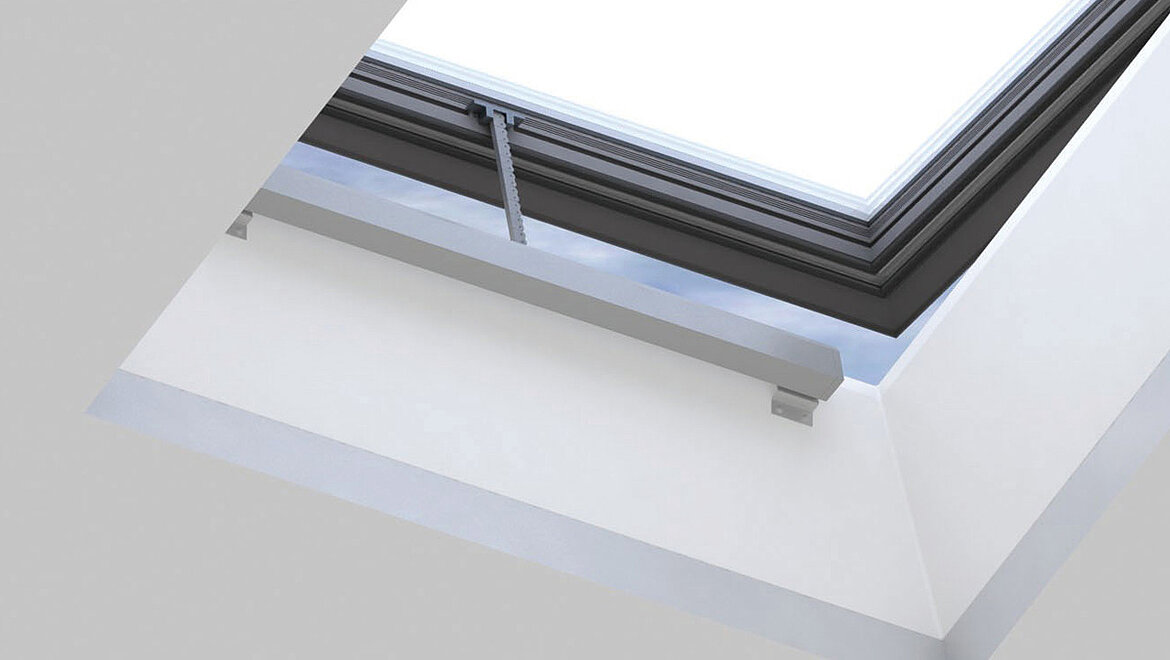

Chain drive opener (24 V on request)
Integrated chain drive openerPRODUCT EXTENSIONS

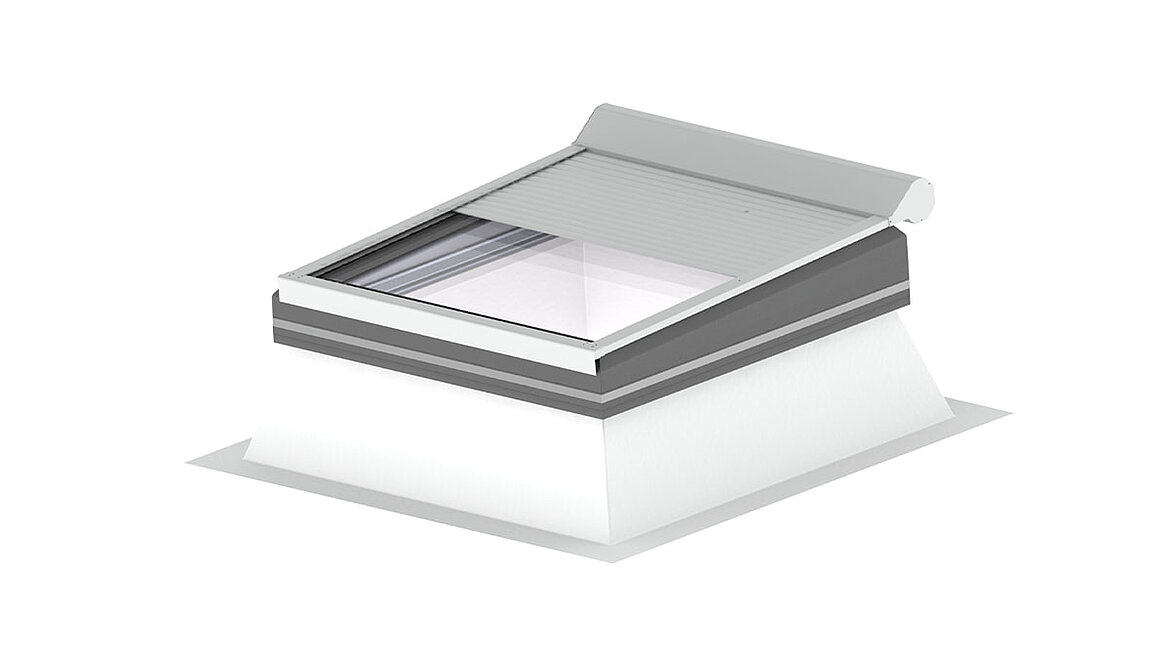

SUN PROTECTION
- Inside with safety tie bars
- Outside as blind
- Between glass panes
- Outside, rigid (sun protection with deciduous tree effect)

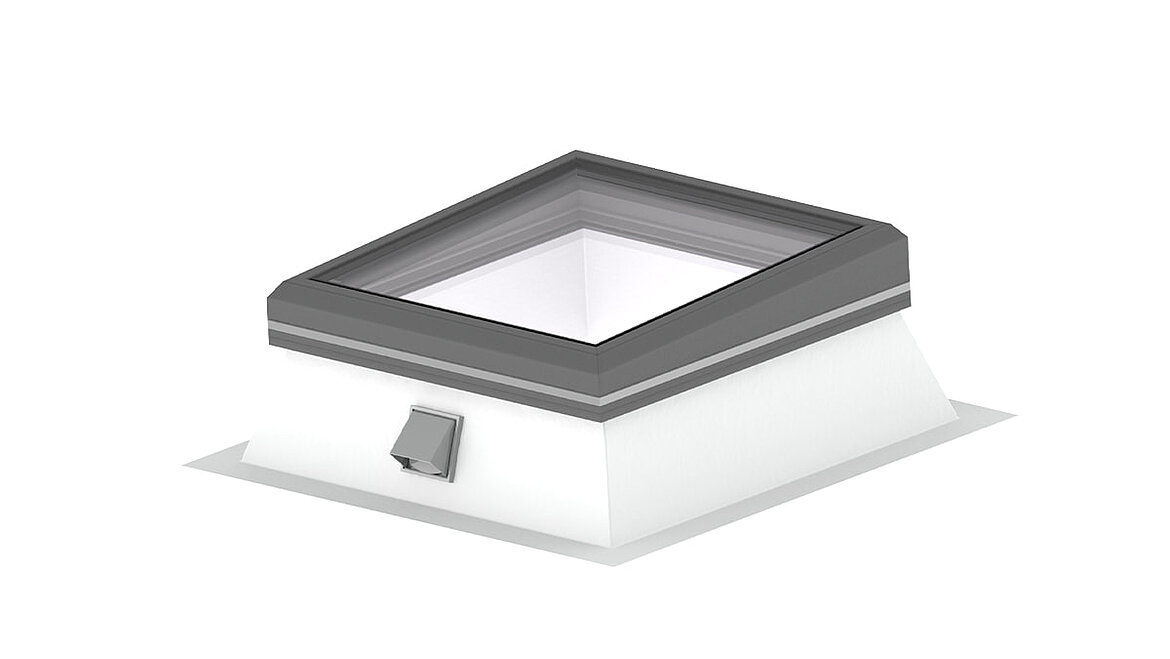

SMALL SPACE VENTILATION UNIT
- Integrated in upstands with a height of 30, 40 and 50 cm to provide ventilation
- Integrated weather protection cover and insect protection
- Air flow volume: 180 m³/h
- Protection class: IP34

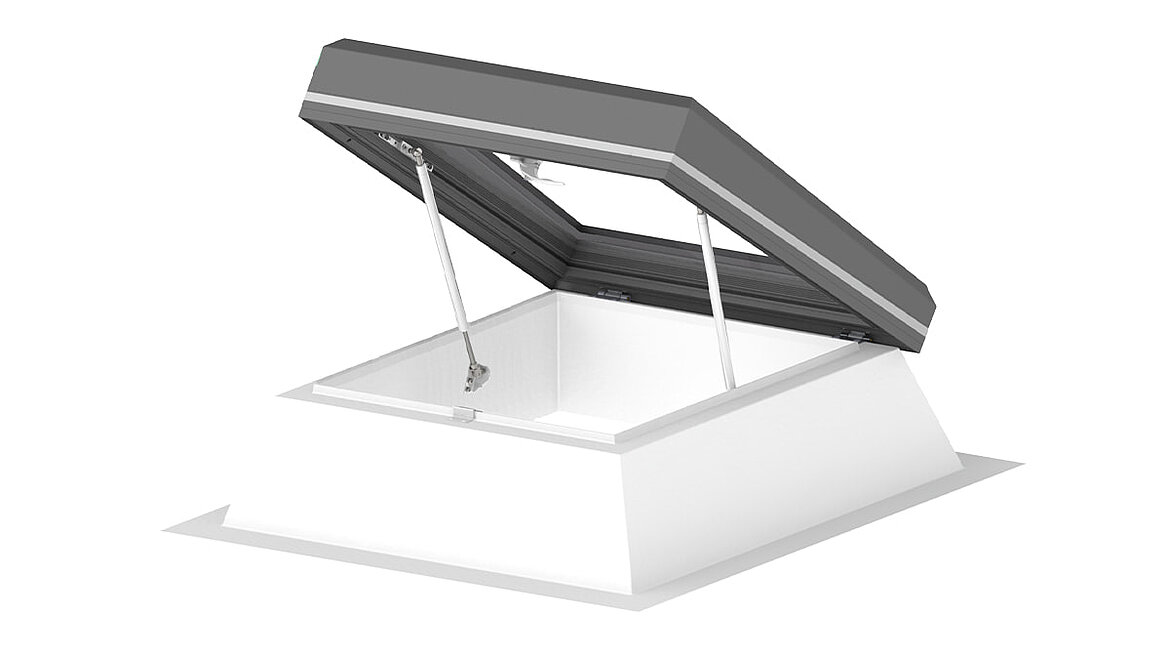

ROOF EXIT HATCH WITH MANUAL OPENING
- Easy opening with gas pressure springs
- For double glazing up to a size of 120 cm x 120 cm
- For triple glazing up to a size of 100 cm x 100 cm

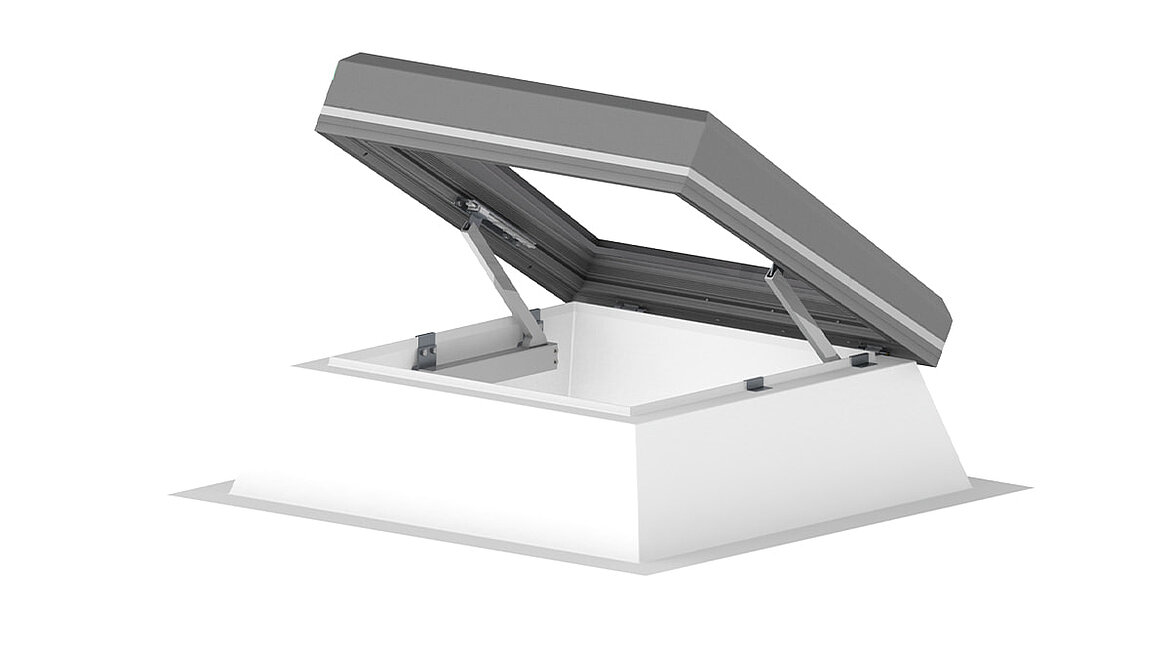

ROOF EXIT HATCH WITH ELECTRIC OPENING
- Convenient opening with electric motor
- For double glazing up to a size of 120 cm x 150 cm
- For triple glazing up to a size of 120 cm x 120 cm

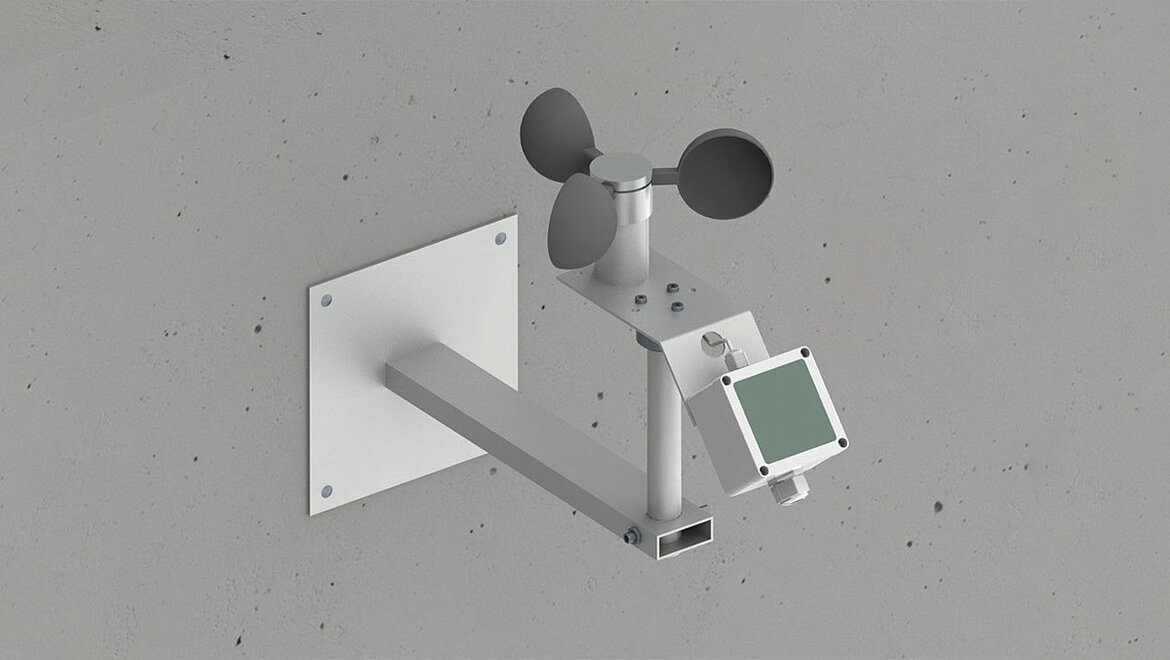

WIND AND RAIN SENSORS
- For automated opening and closing of the Glass Skylight in the event of wind and rain
- Operated as a group or individually

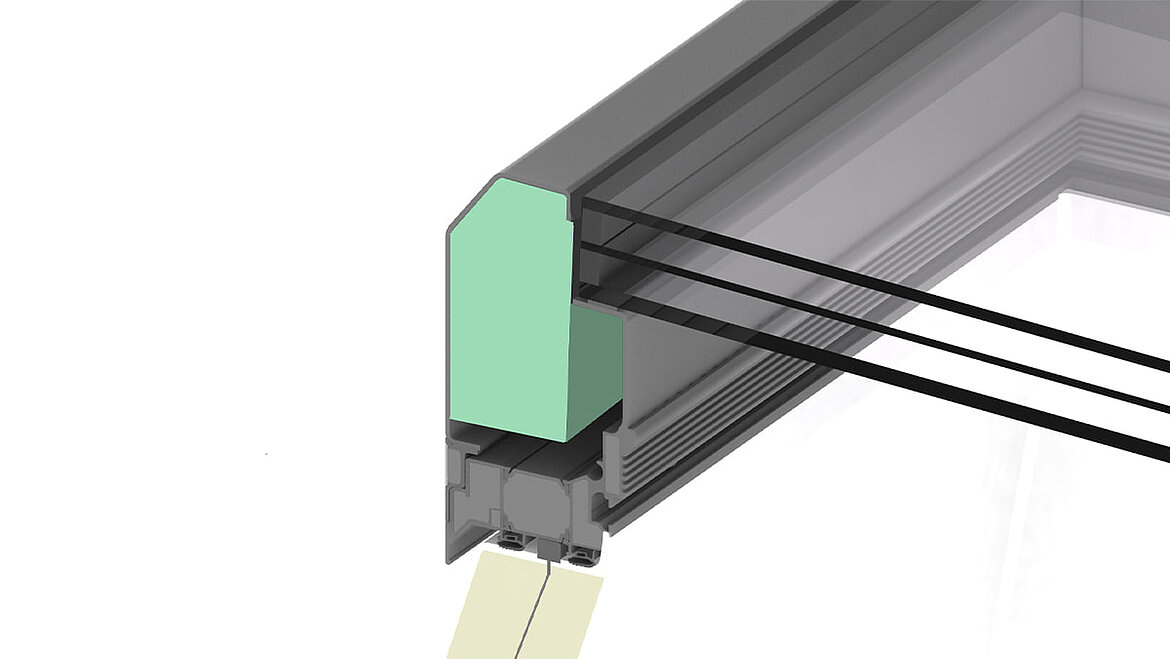

REED CONTACT
- Magnet switch integrated into the frame profile for a contactless switching operation
- Indication of the opening position (closed/open) of the daylight element
- Option to connect to an alarm system
